Accessories
Please note we are not a Honda dealer. Honda is a registered trademark of Honda Motor Co.
Add
Genconnex 30Amp neutral
to ground bonding 120V
trailer adapter
Add

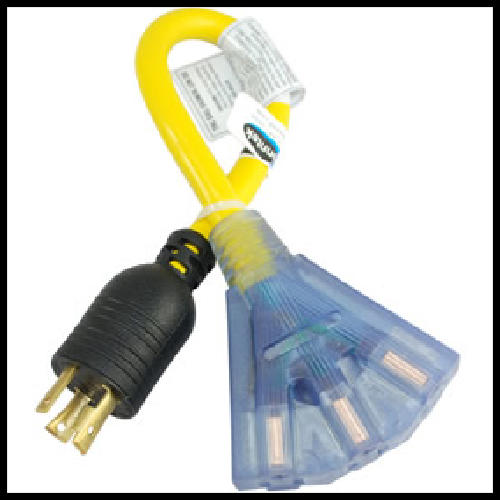

3 outlets with this 30
Amp to 3 15
Amp adapter
Add

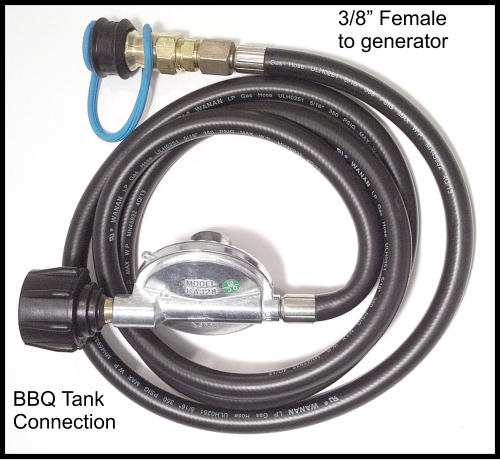

6 foot propane
hose with regulator
for BBQ tanks
Add

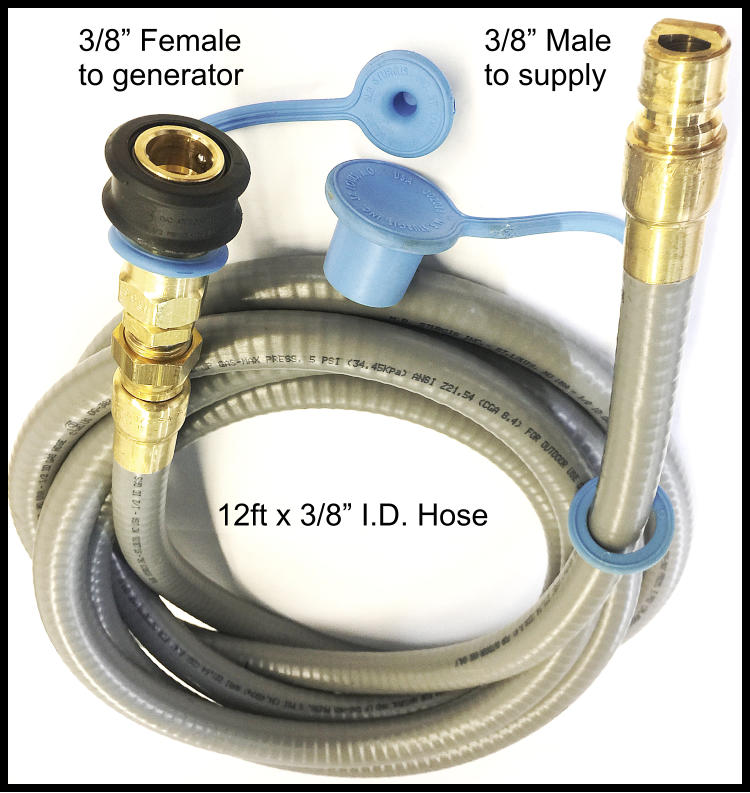

12’ x 3/8”id quick-
disconnect extension
hose for propane
Add
Marine Grade
L5-30P to L5-30 Outlet
12ft extension cord
Add
Marine Grade
L5-30 outdoor inlet kit
Propane
Load
3.24 lbs/hr
2,900 Watts
1.50 lbs/hr
1,600 Watts
1.17 lbs/hr
1,000 Watts
0.84 lbs/hr
400 Watts
In Stock!

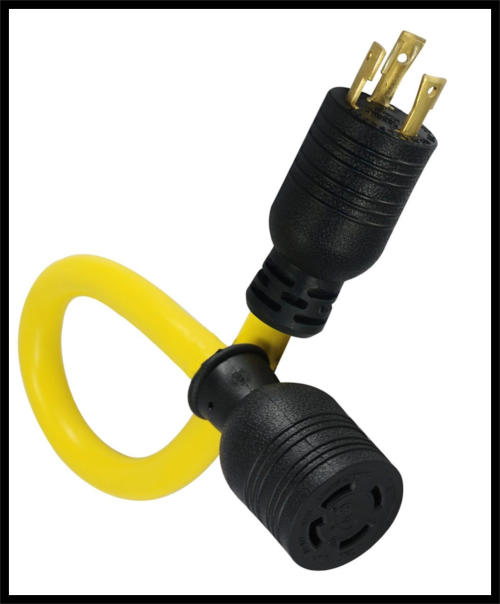

Add L5-30 to L14-30
adapter to power both
legs of 120Vac system
from single
120Vac source
Add
12’ x 1/4” id quick-
disconnect proopane
hose for 1/4” camper
outlet
click pictures to enlarge
A NOTE ABOUT
NATURAL GAS APPLIANCES:
Some
states
(including
but
not
limited
to
MA)
require
portable
generators
that
are
connected
to
a
home’s
gas
supply
(even
temporarily)
to
be
listed
devices.
Other
states
default
to
the
International
Fuel
Gas
Code
and
allow
non-listed
outdoor
only
devices
such
as
outdoor
natural
gas
grills,
heat
lamps
and
other
accessories
to
be
installed
as
permitted
by
your
town
and
local
inspector.
Please
check
first
with
your
local
inspector
if
you
are
not sure.
Always use a
licensed plumber!
This is your home.
Get it done right and get it
inspected. Nobody knows state,
federal and local safety codes
better than the licensed experts.
All off our generators work with our optional
APC/HONDA programmable auto load
shedding 120Vac transfer switch kits. Our kits
aren’t just the basic switch, but come complete
with an outdoor water tight power inlet install
package
This switch, designed by APC and HONDA will
automatically shed less needed loads to make sure there’s
enough power to start critical loads. Then it automatically
turns the other loads back on as more power becomes
available!
For instance, it will automatically turn off your fridge and
freezer for 10min while you make popcorn in your
microwave - even with a 2000Watt Honda or Yamaha!
This is how you connect your home to your
generator
GET A
“SMART” CIRCUIT
TRANSFER SWITCH!
Automatic
home
backup of
6-10
circuits!
Includes a 30Amp
outdoor inlet kit
Need
Automatic
Load
Management?
> 10 Deg F
2kW 20lb tank,
3kW 30lb tank,
7kW 60lb -100lb tank or dual 30lb
0 to -10 Deg F
2kW 30lb tank
3lW 40lb tank
7kW 100lb tank or dual 40lb tanks
< -10 to -20 Deg F
2kW 40lb tank
3lW 60lb tank
7kW Dual 60 to100lb tanks
Additional tank sizing
for low temperatures
(assuming 1/2 average rated load)
How long will
my tank last?
Shutoff +Quick Disconnect
How simple is it?
Add an outdoor shutoff valve then a quick-
disconnect for your generator and gas grill.
Then order one of our gas extension hoses
and...
We use the same pressure as the
natural gas or propane inside your
home.
How do I connect
to my home’s
natural gas or
propane?
Additional Information

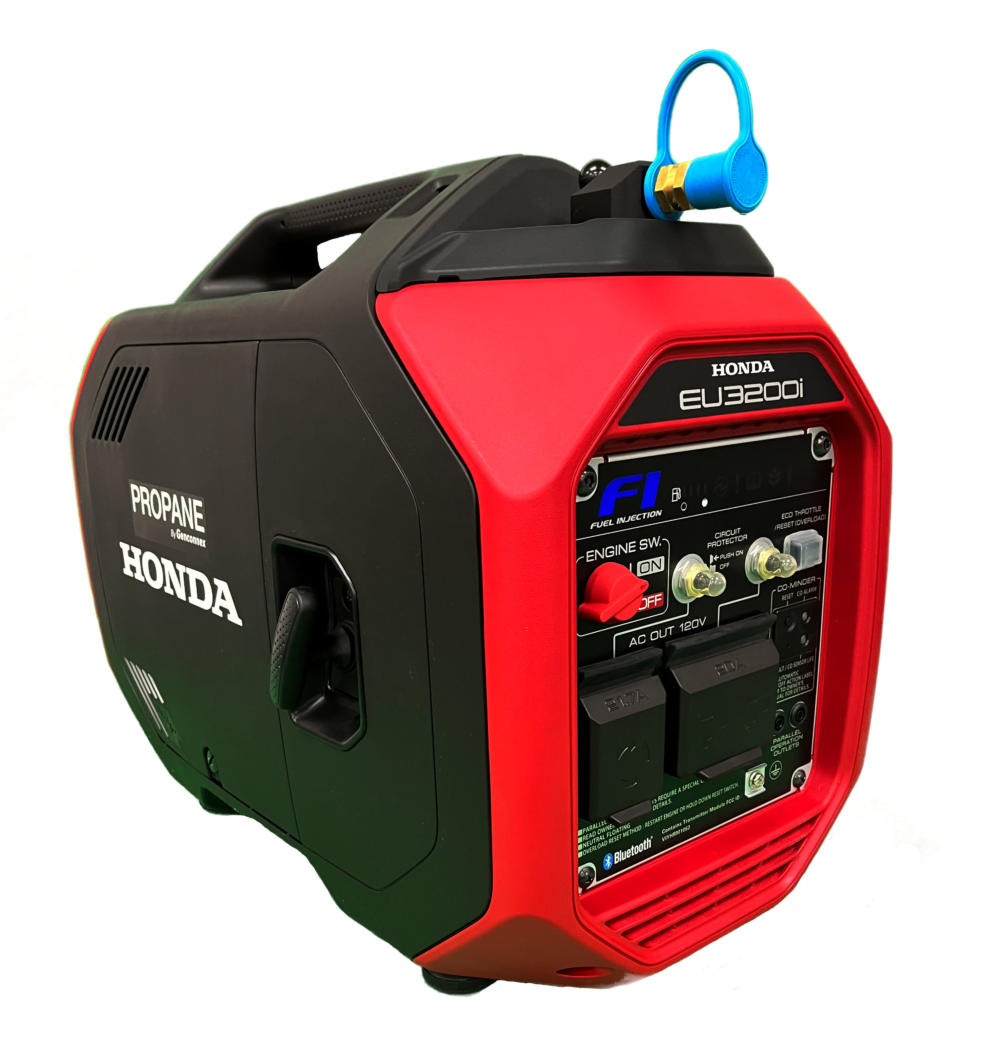

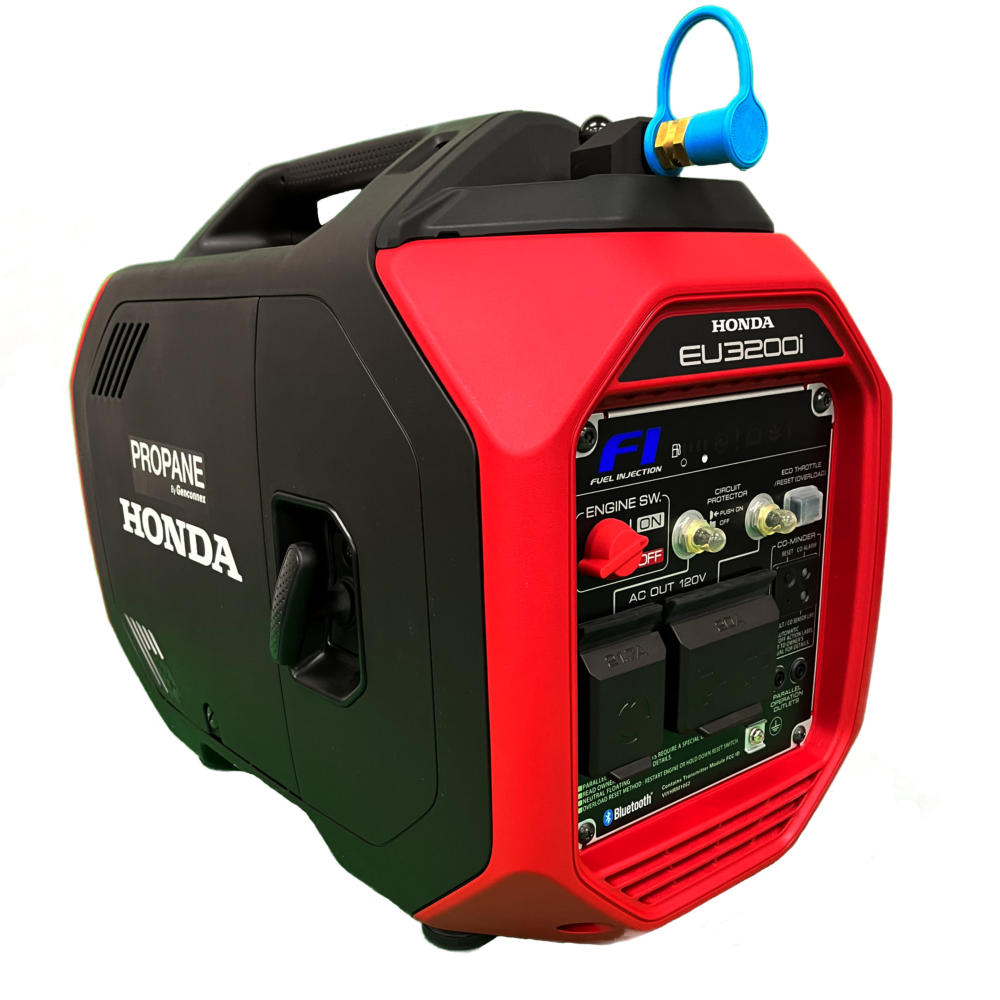

HONDA EU3200i Propane
Whisper Quiet
Inverter Generator
conversion engineered by Genconnex Direct
FUEL USAGE

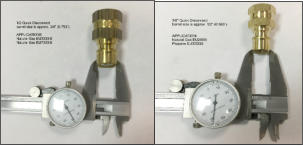

All Genconnex generators have a
⅜” quick disconnect inlet for easily
connecting to your grill port or BBQ
tank using our hose with pressure
reducing regulator to a pressure of
7-13”w.c., (aka 1/2” PSI)
6’ propane hose with
integral regulator for
connecting to standard
BBQ tank
12’ x 3/8” id hose with
3/8” quick-disconnect
6’ stainless steel over-
braided hose with 3/8”
quick-disconnect
12’ propane hose with
integral regulator for
connecting to standard
BBQ tank
GENERATOR DIMENSIONS
22.5”l x 12”w x 17.8”h
x 58lbs
FUEL CONNECTION
EU3200i
HOSE OPTIONS
12’ x 5/16” id hose
with 1/4” Trailer quick-
disconnect
Generator Features & Benefits
- 3,200 / 2600 Watts peak/rated on propane
- Whisper Quiet Enclosure
At 54dBa @1/4 load, sleeping won’t be a problem
- Inverter Output
Fuel efficient and electronics safe
- Propane Ready
Just connect it to your BBQ
tank and run
- Pull Start
No battery to keep charged and lighter to carry
- 120VAC Output
- Weight 58 pounds
Lightest class of generator due to inverter technology
- Warranty
- We offer a new limited warranty of 3
years/1000hr - see our warranty page.
- EPA certified 50 states

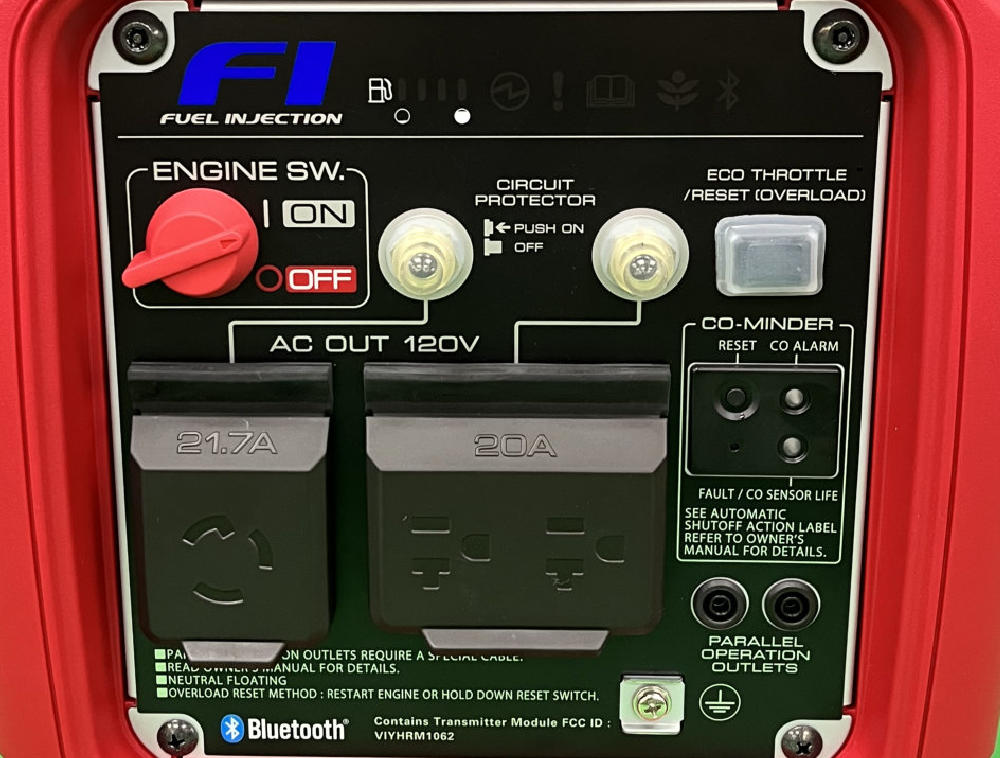

2 standard outlets and 1
30Amp outlet under
protective cover. The
30Amp outlet.
Output ratings are +/-3% measured at 68deg F, 29.92
inches of mercury. Your results may vary at different
temperature, and air pressure/altitude
More Options
Genconnex Direct
GXG-LP-EU3200i-WSA-EC3
$3,199.99
$89.99
shipping
+
No Sales Tax outside of Massachusetts
HONDA EU3200i
Propane
Conversion by Genconnex Direct
Typical Loading
Refrigerator
Freezer
Heating system or window A/C units
Hall or bathroom lights
Garage door opener
Microwave and coffee maker
Internet/TV and room light
kitchen light
120Vac sump pump
Shipping Rates Apply to lower 48 States Only
SHIPPING NOTES:
Not eligible for shipping to Canada
NOTE: IN CALIFORNIA FOR FARMING,
CONSTRUCTION, OR EMERGENCY USE ONLY.
- 3,200Watt Propane
- 120Vac
- Inverter Output
- Whisper Quiet
- Hand Portable
- BlueTooth
Specifications
Whisper quiet
Unlike a typical 70dB
portable generator that runs
so loud it can wake the dead,
these are stunningly quiet!
Yes, you and your neighbors
will appreciate it.
