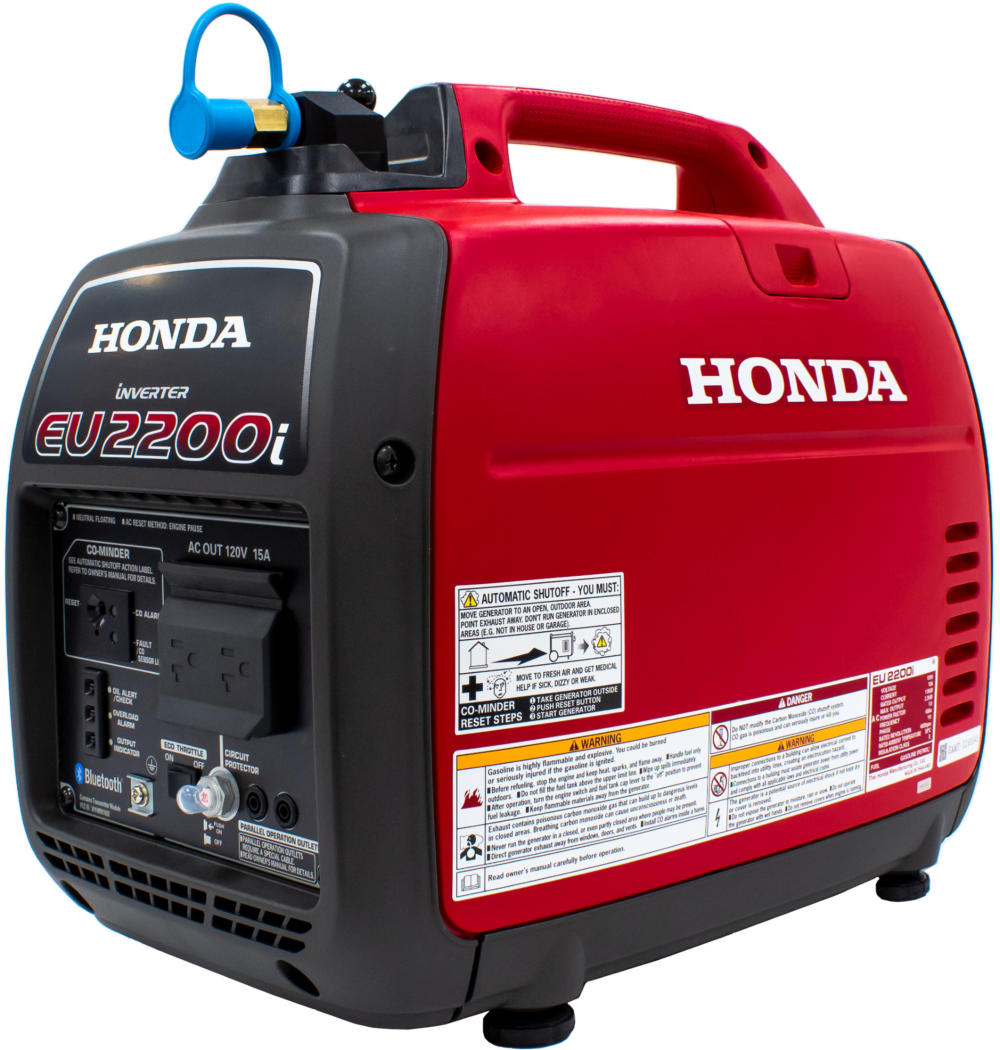

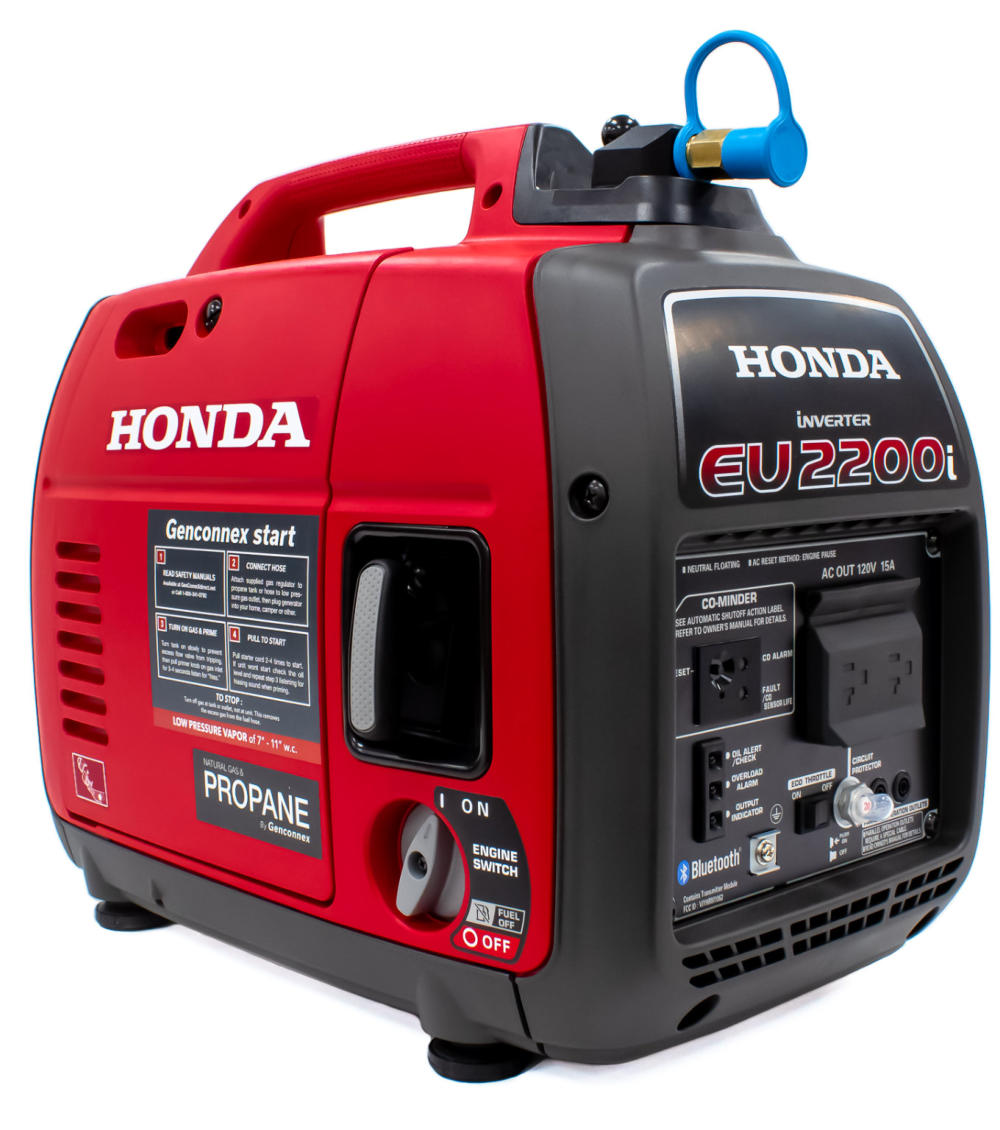

HONDA EU2200i Natural Gas
WhispereQuiet Inverter Generator
Home 4 Package
conversion by Genconnex Direct
Natural Gas
3.6kWatt, 120Vac, 6 Circuit
Generator Home Backup Package
Package ‘Home 4’
$4,269.92
Ships in 5-7 days
+ Shipping
Genconnex Direct
‘Home Package 4’
Accessories
Add
12’ x 1/4” id quick-
disconnect proopane hose
for 1/4” camper outlet
Add
Honda EU2200i
series silver cover
Add Genconnex
30Amp
neutral to ground bonding
120V trailer adapter
Add

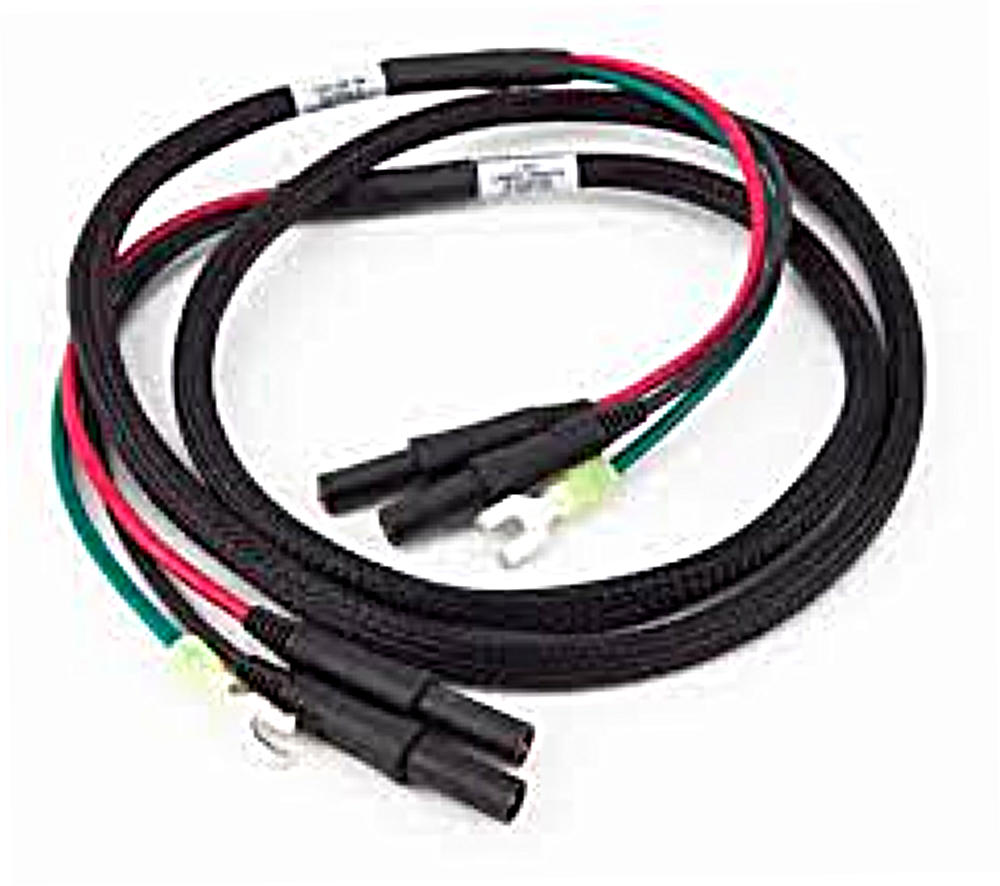

Honda parallel cable to
connect any two EU2200i
together
Add
dual output BBQ tank
adapter
Add

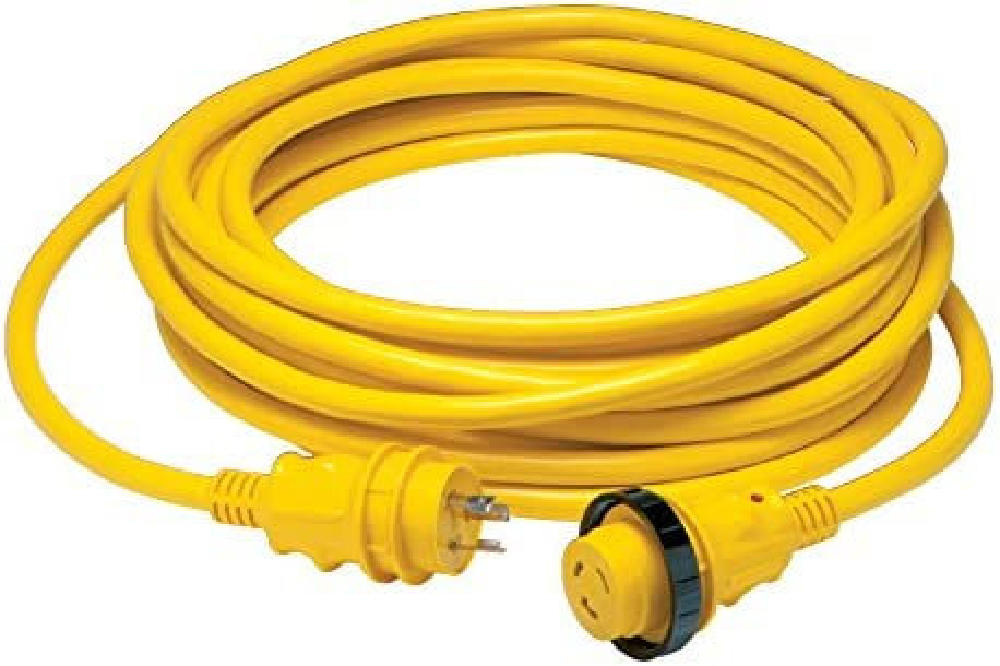

Marine Grade
5-15P to L5-30 Outlet
16ft extension cord
1- EU2200i Companion
1- Dual tank auto switchover valve
1- 120Vac - 30Amp inlet kit
1- Transfer switch (not shown)
1- 15ft L5-30 extension cord
By using a dual tank
auto switchover valve
you can exchange
the empty tank
without turning off
the generator!
Or build your own really cool
custom solution like this.
Want to connect
two Honda 2200’s
to your home’s
propane or natural
gas?
1- EU200i Standard
1- EU2200i Companion

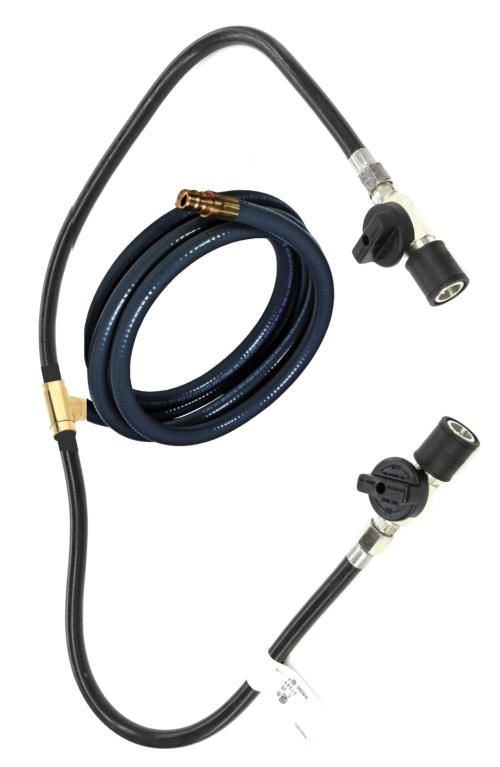

1- Dual output 3/8id gas hose
1- 120Vac - 30Amp inlet kit
1- 15ft x L5-30 extension cord
1 - Honda EU2200i parallel cables
Warning: always use a licensed
plumber to make any changes to
your home’s gas supply.
Pipe size, shutoff valve location,
nearby windows and openings and
more are all part of the safety codes a
qualified plumber is required to know
to keep you safe!
wheelie-cart
tm
The Genconnex
®
Click Here for more Information
Add
Marine Grade
L5-30P to L5-30 Outlet
12ft extension cord
Add
Marine Grade
L5-30 outdoor inlet kit
Add
6 foot propane hose
with regulator for BBQ
tanks
Add
Genconnex
®
2200i & 3200i
Wheelie Cart
™
Add
12’ x 3/8”id quick-disconnect
extension hose for propane &
natural gas
Add
12’ x 1/2”id quick-disconnect
extension hose for propane
and natural gas
OUT OF STOCK
A NOTE ABOUT
NATURAL GAS APPLIANCES:
Some
states
(including
but
not
limited
to
MA)
require
portable
generators
that
are
connected
to
a
home’s
gas
supply
(even
temporarily)
to
be
listed
devices.
Other
states
default
to
the
International
Fuel
Gas
Code
and
allow
non-listed
outdoor
only
devices
such
as
outdoor
natural
gas
grills,
heat
lamps
and
other
accessories
to
be
installed
as
permitted
by
your
town
and
local
inspector.
Please
check
first
with
your
local
inspector
if
you
are
not sure.
Always use a
licensed plumber!
This is your home.
Get it done right and get it
inspected. Nobody knows state,
federal and local safety codes
better than the licensed experts.
All off our generators work with our optional
APC/HONDA programmable auto load
shedding 120Vac transfer switch kits. Our kits
aren’t just the basic switch, but come complete
with an outdoor water tight power inlet install
package
This switch, designed by APC and HONDA will
automatically shed less needed loads to make sure there’s
enough power to start critical loads. Then it automatically
turns the other loads back on as more power becomes
available!
For instance, it will automatically turn off your fridge and
freezer for 10min while you make popcorn in your
microwave - even with a 2000Watt Honda or Yamaha!
This is how you connect your home to your
generator
GET A
“SMART” CIRCUIT
TRANSFER SWITCH!
Automatic
home
backup of
6-10
circuits!
Includes a 30Amp
outdoor inlet kit
Need
Automatic
Load
Management?

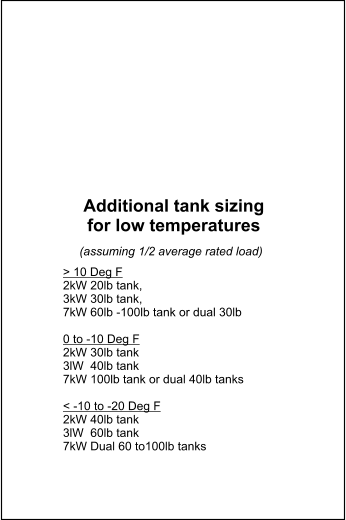

How long will
my tank last?
Shutoff +Quick Disconnect
How simple is it?
Add an outdoor shutoff valve then a quick-
disconnect for your generator and gas grill.
Then order one of our gas extension hoses
and...
We use the same pressure as the
natural gas or propane inside your
home.
How do I connect
to my home’s
natural gas or
propane?
Additional Information
Dual Tank Auto
Switchover
Regulator
Tired of carrying
your EU2200i or
EU3200i?
Click Here for more Information
Propane
Nat. Gas Load
1.60 lbs/hr
38,000BTU 1600 Watts
0.92 lbs/hr
20,000BTU 800 Watts
0.70 lbs/hr
15,000BTU 400 Watts

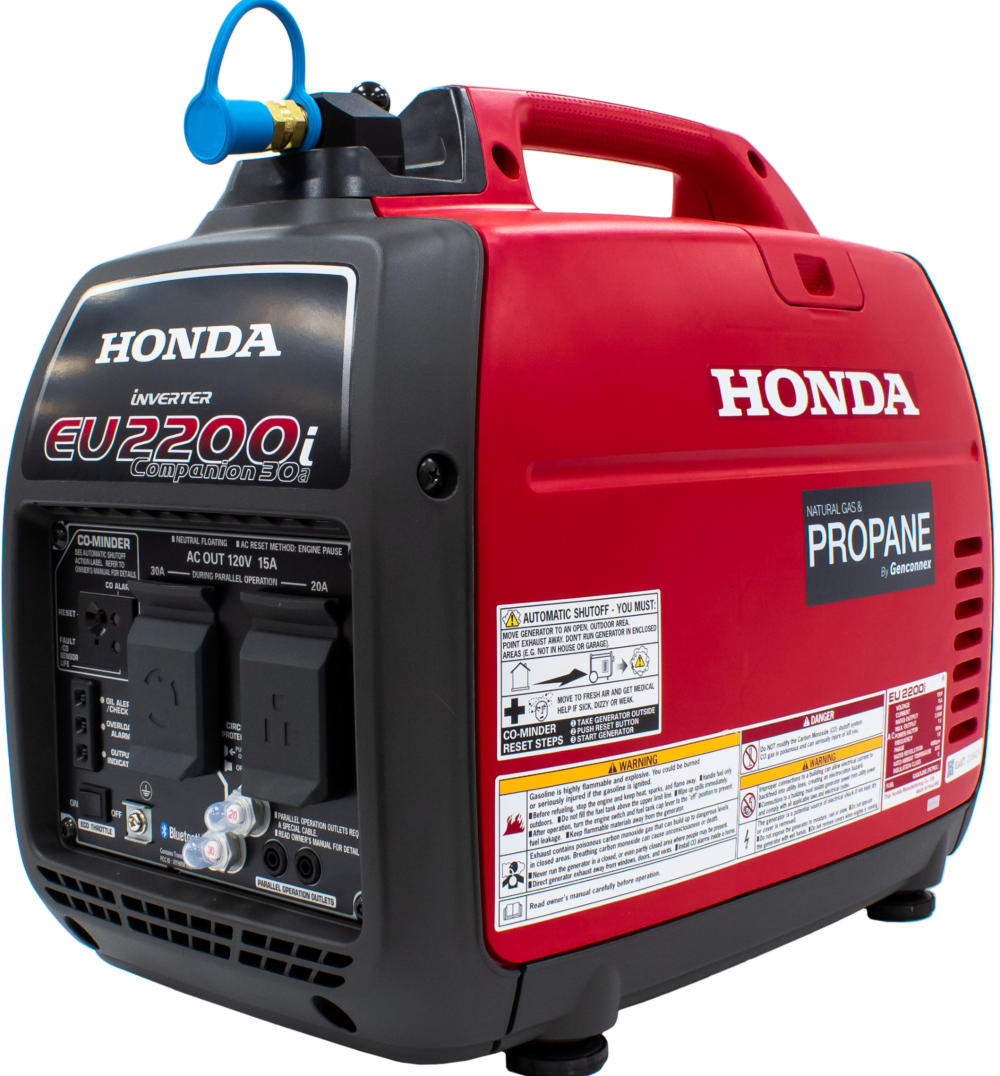

Generator Features & Benefits
- 3,600 / 3,600 Watts peak/rated natural gas
- Ultra Sound Absorbing Enclosure
At 48dBa @1/4 load, sleeping won’t be a problem
- Propane & Natural gas Ready
Just connect it to your BBQ
tank and run, or natural gas grill outlet.
- Pull Start
No battery to keep charged and lighter to carry
- 120VAC Output
- Inverter Output
Fuel efficient and electronics safe
- Approx. 48 pounds
Lightest class of generator due to inverter technology
- Warranty
- We offer a new limited warranty of 3
years/1000hr - see our warranty page.
- EPA certified 50 states
FUEL USAGE

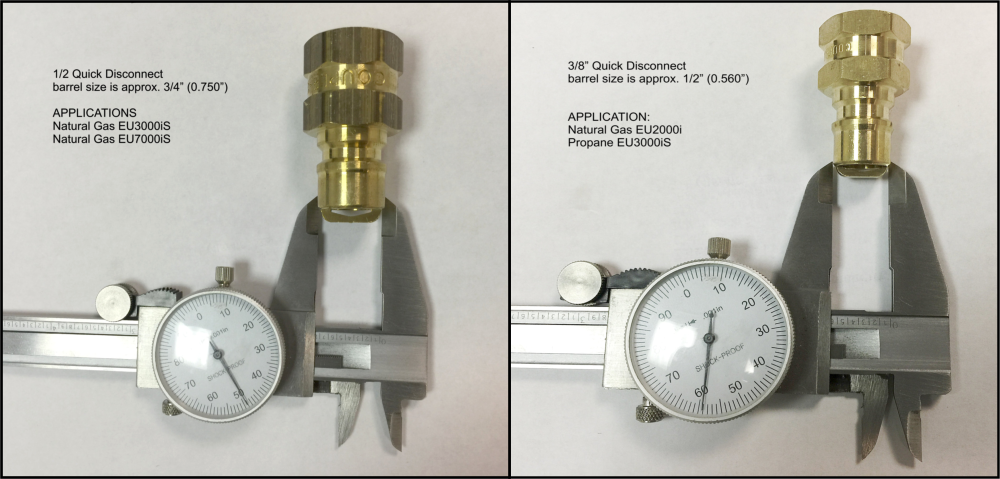

All Genconnex generators have a
⅜” quick disconnect inlet for easily
connecting to your grill port or BBQ
tank using our hose with pressure
reducing regulator to a pressure of
7-13”w.c., (aka 1/2” PSI)
GENERATOR DIMENSIONS
20”l x 11.4”w x 16.7”h
x 48lbs
FUEL CONNECTION

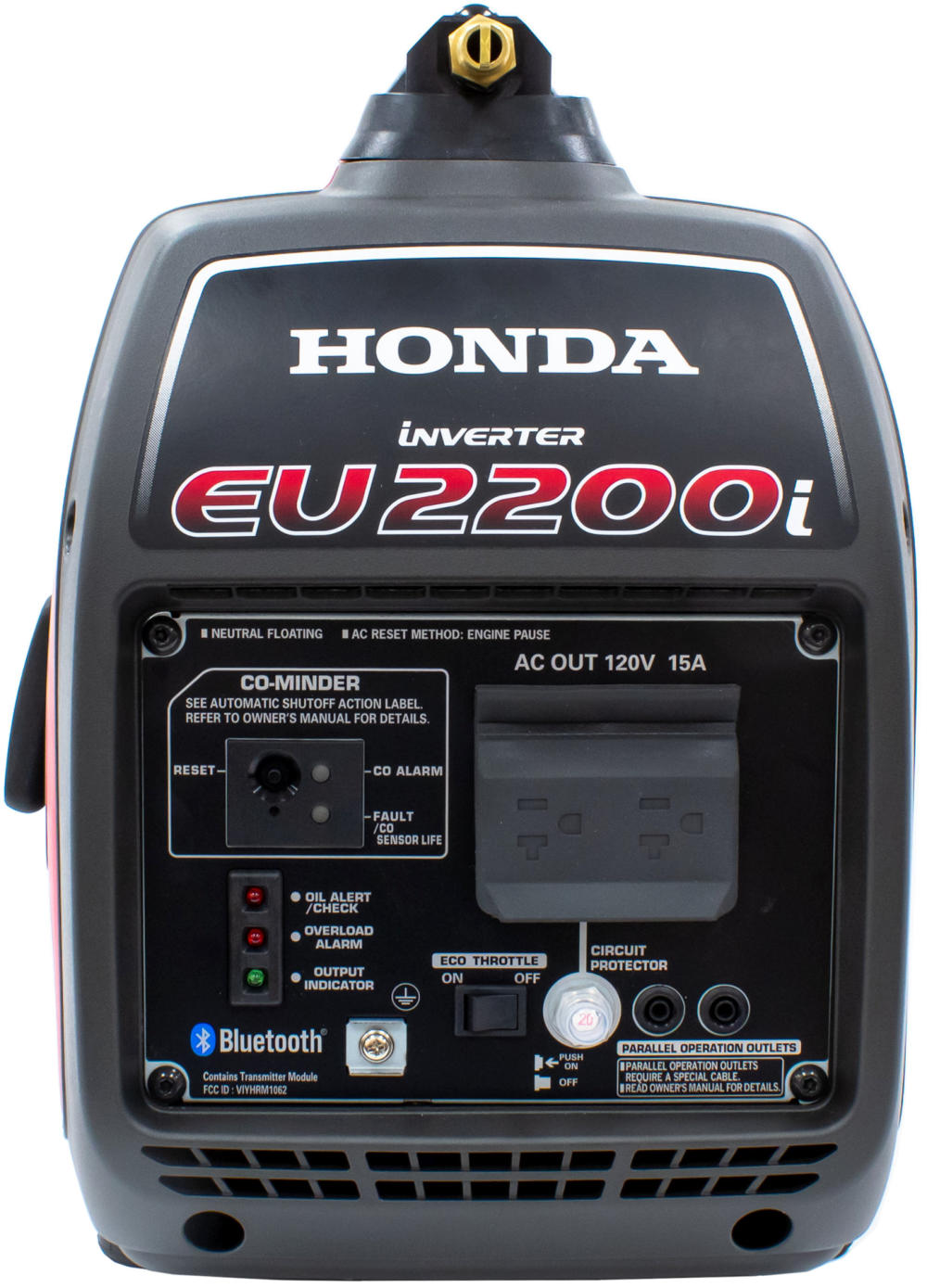

Base Model
Companion Model
2 standard
outlets under
protective
cover
1 standard outlet and 1
30Amp outlet under
protective cover. The
30Amp outlet is rated to
handle the combined power
of 2 EU2200’s in parallel.
Output ratings are +/-3% measured at 68deg F, 29.92
inches of mercury. Your results may vary at different
temperature, and air pressure/altitude

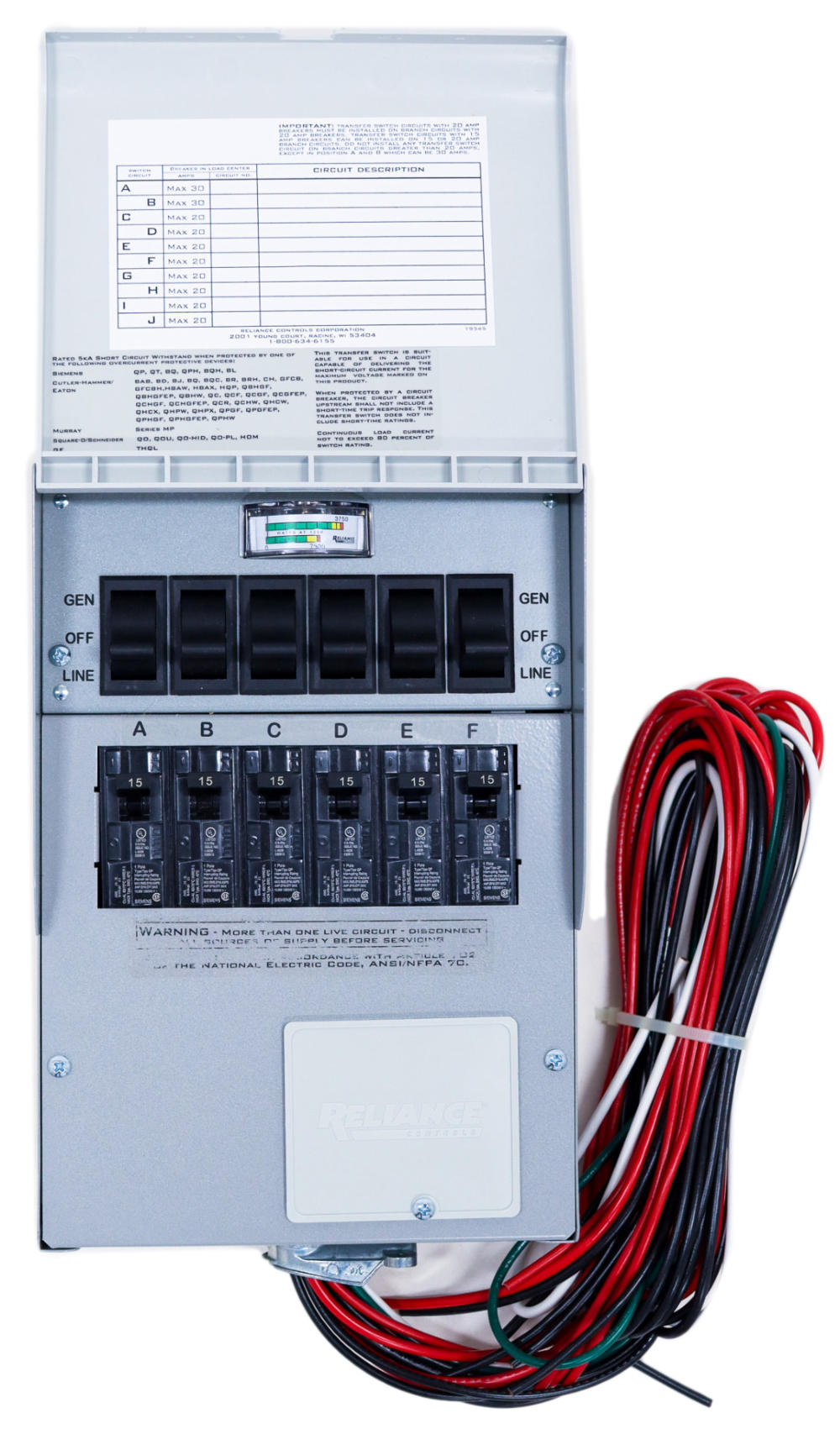

Transfer Switch Info
-
6 Circuits with individual switches for adjusting load
-
Pre-wired for easy installation
- 120Vac - 30Amp L5-30 Outdoor rated power Inlet included
- Indoor or Outdoor mounting
- Dimensions 7.75 x 11.25 x 4.75
Typical Configuration
Large refrigerator
Large freezer
Heating system or window A/C
Hall or bathroom light
Internet/TV and room light
Microwave and coffee maker
What’s Included
Genconnex
®
generator
GXG-LPNG-EU2200i-SA-EC
GXG-LPNG-EU2200i-COMP-SA-EC
Pro/Tran 6 transfer switch with

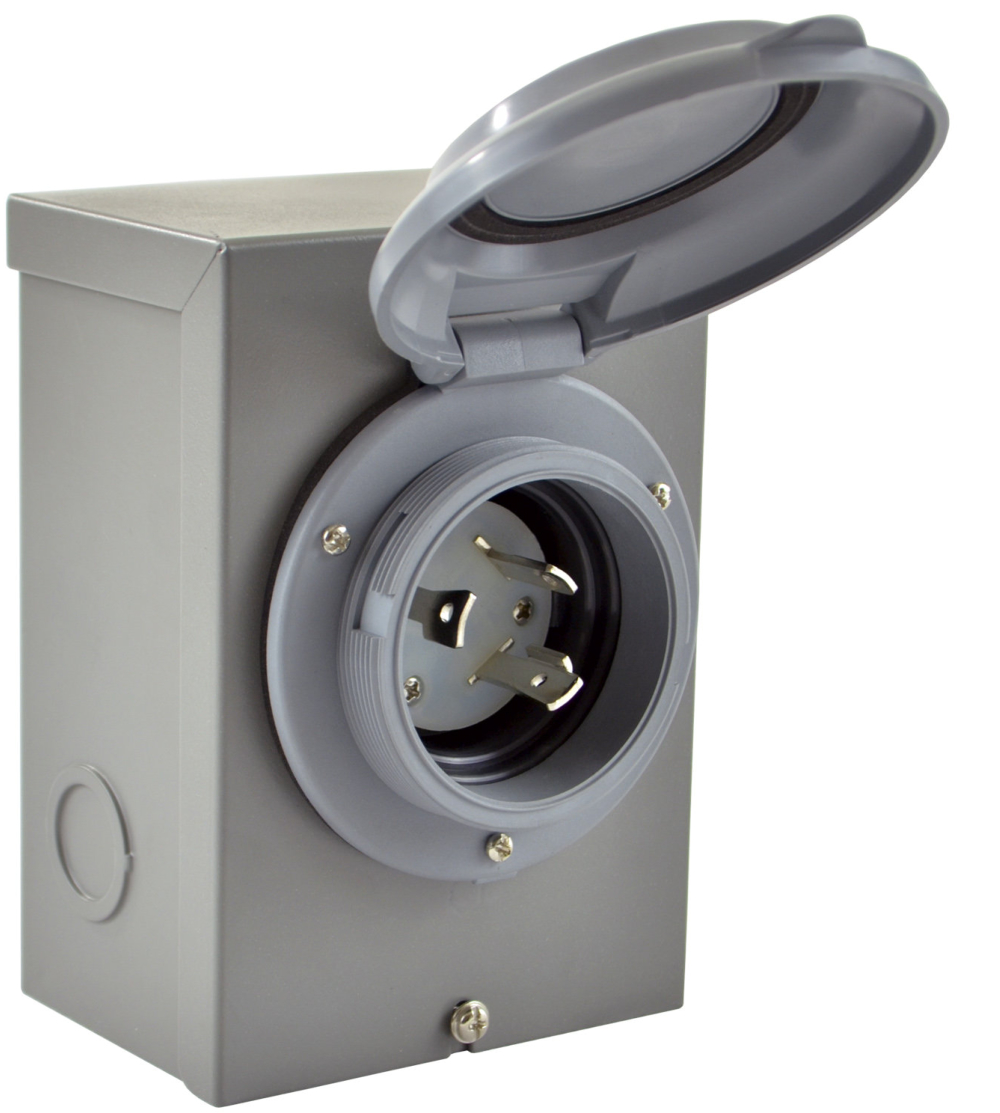

L5-30 water tight inlet kit
12 foot 120V-30A L5-30 outdoor
electrical extension cord

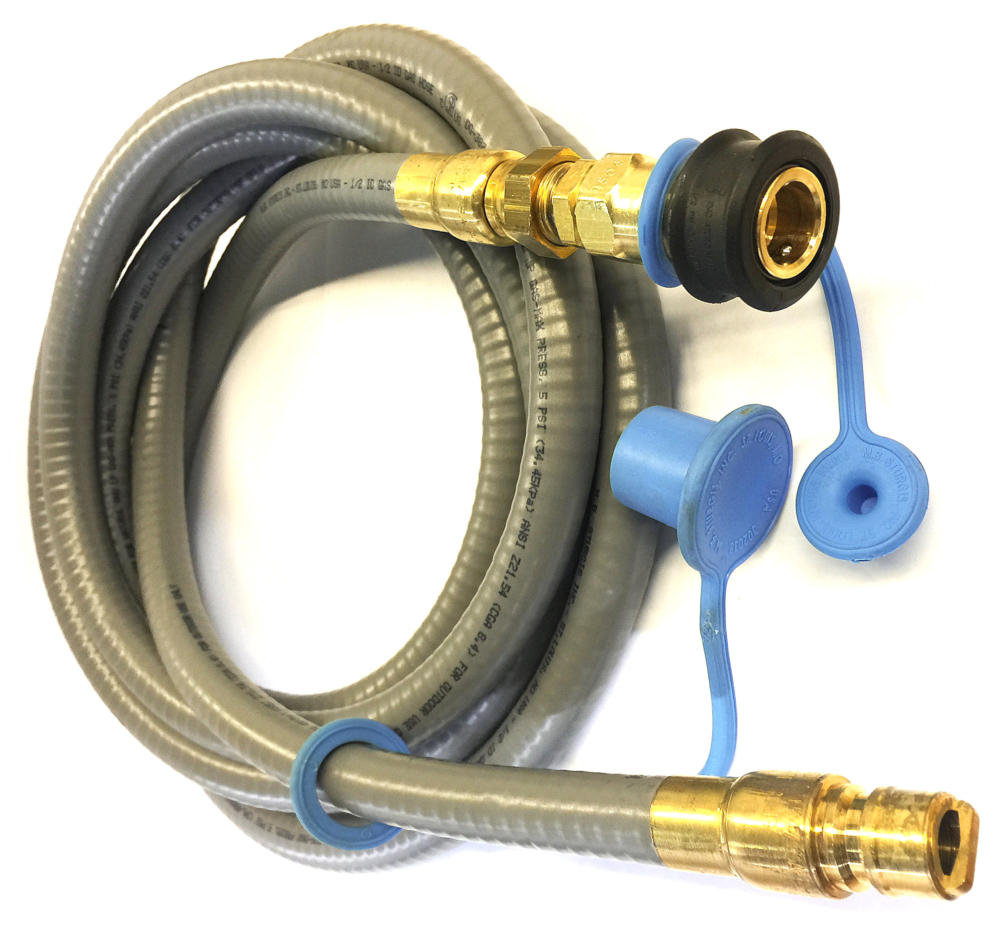

2-12 foot x 3/8id natural gas hoses
Honda parallel cables

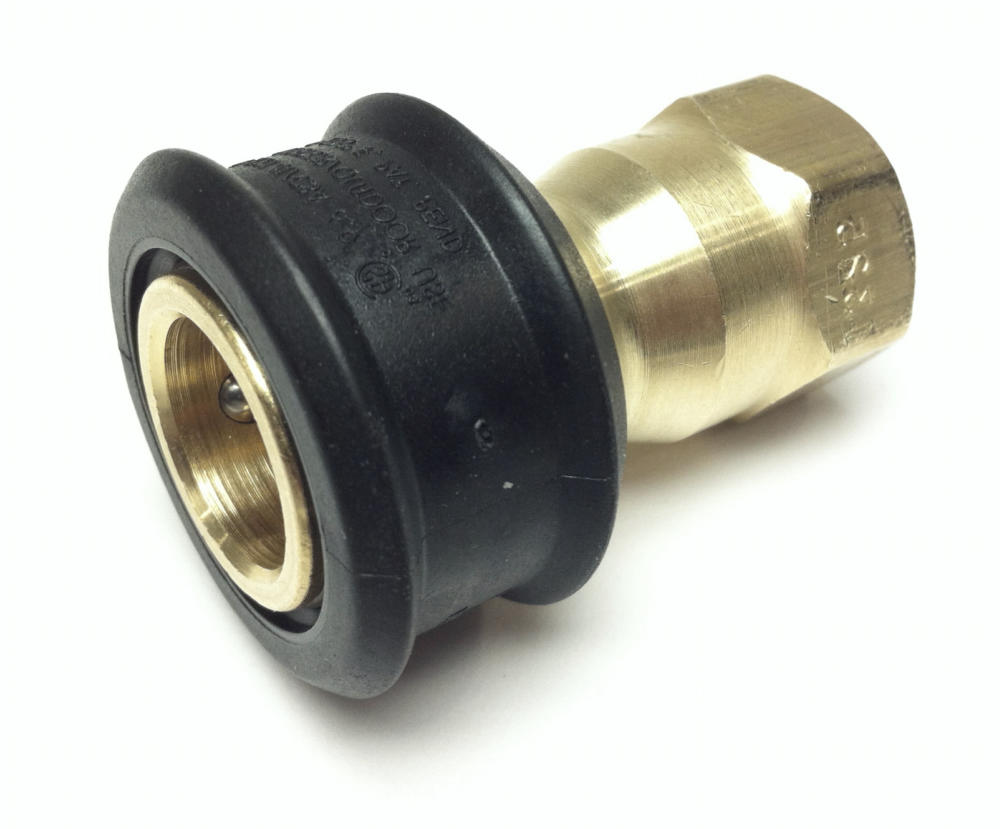

2 female quick connects

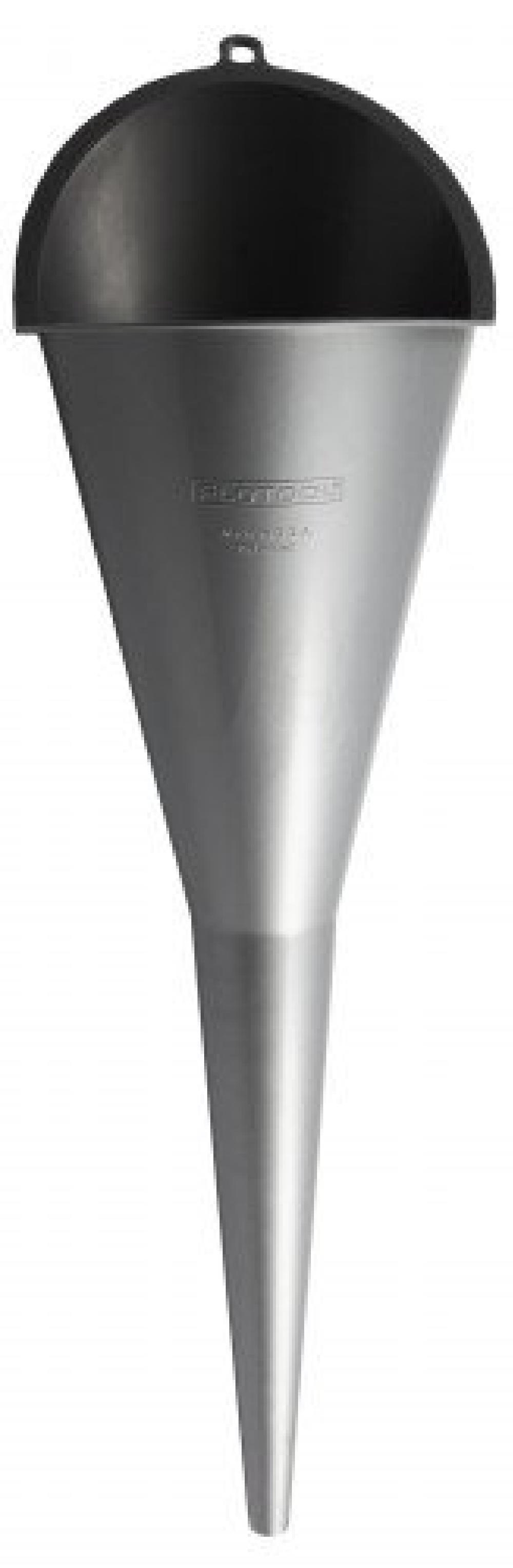

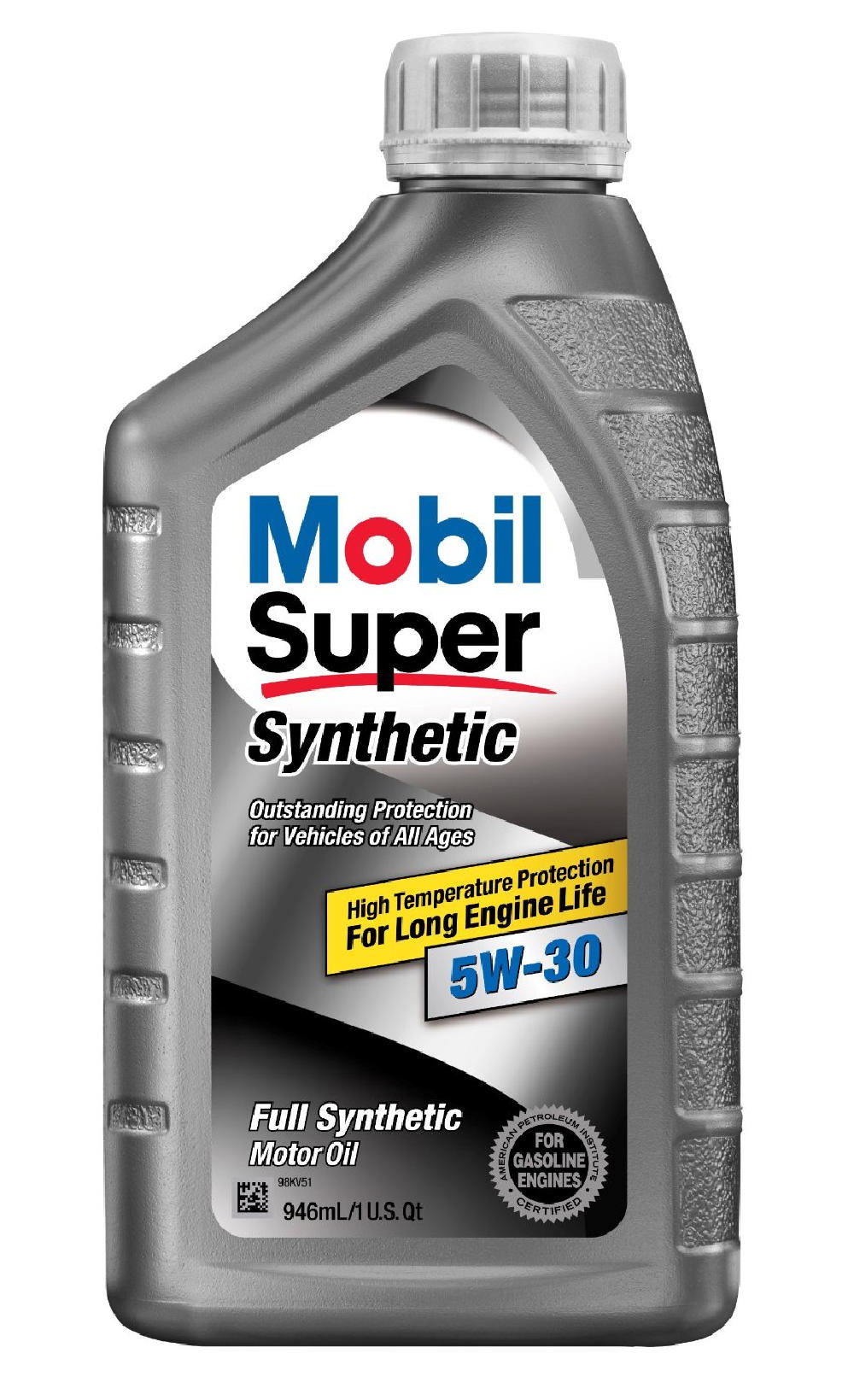

Oil funnel and
1 quart of fully synthetic oil
More Options
click pictures to enlarge
Specifications
NOTE: IN CALIFORNIA FOR STATIONARY
EMERGENCY USE ONLY.
