HONDA EU7000is Natural Gas
Whisper Quiet Inverter Generator
Home 9 Package
conversion by Genconnex Direct
Natural Gas
6kWatt 120/240Vac 9 Circuit Auto Load-shed
Generator Home Backup Package
Typical Configuration
240Vac well pump
Large refrigerator Large freezer Heating system or window A/C units Hall or bathroom lights Garage door opener Microwave and coffee maker Internet/TV and room light kitchen light 120Vac sump pump
What’s Included
Genconnex
®
generator
GXG-LPNG-EU7000is-SA-EC
configured for low-pressure propane with natural gas orifice included Honda silver generator cover APC UTS10 transfer switch with L14-30 inlet kit 12 foot 1/2” propane quick-disconnect extension hose with extra 1/2” female quick-disconnect w/NPT pipe threads 25 foot 120/240 30A outdoor electrical extension cord Oil funnel and 1 quart of fully synthetic oil Detachable Battery Tender (battery connection pre-installed) Honda Silver Cover
Package ‘Home 9’
Accessories
More Options
A NOTE ABOUT
NATURAL GAS APPLIANCES:
Some
states
(including
but
not
limited
to
MA)
require
portable
generators
that
are
connected
to
a
home’s
gas
supply
(even
temporarily)
to
be
listed
devices.
Other
states
default
to
the
International
Fuel
Gas
Code
and
allow
non-listed
outdoor
only
devices
such
as
outdoor
natural
gas
grills,
heat
lamps
and
other
accessories
to
be
installed
as
permitted
by
your
town
and
local
inspector.
Please
check
first
with
your
local
inspector
if
you
are
not sure.
Always use a
licensed plumber!
This is your home.
Get it done right and get it
inspected. Nobody knows state,
federal and local safety codes
better than the licensed experts.
All off our generators work with our optional
APC/HONDA programmable auto load
shedding 120Vac transfer switch kits. Our kits
aren’t just the basic switch, but come complete
with an outdoor water tight power inlet install
package
This switch, designed by APC and HONDA will
automatically shed less needed loads to make sure there’s
enough power to start critical loads. Then it automatically
turns the other loads back on as more power becomes
available!
For instance, it will automatically turn off your fridge and
freezer for 10min while you make popcorn in your
microwave - even with a 2000Watt Honda or Yamaha!
This is how you connect your home to your
generator
GET A
“SMART” CIRCUIT
TRANSFER SWITCH!
Automatic
home
backup of
6-10
circuits!
Includes a 30Amp
outdoor inlet kit
Need
Automatic
Load
Management?
Add 12’ x 1/2”id quick-
disconnect extension
hose for propane and
natural gas
Add 12’ x 3/8”id
quick-disconnect
extension hose for
propane
Add 6’ x 3/8”id stainless
steel over-braided quick-
disconnect extension
hose for propane
Generator Features & Benefits
- 5,800 / 5,500 Watts peak/rated natural gas
- Ultra Sound Absorbing Enclosure
At 52dBa @1/4 load, 60 dBa @ rated load
- Inverter Output
Fuel efficient and electronics safe
- Push button start or remote start
- 120/240Vac or 120Vac
Selection switch on front
- Bluetooth remote control
Turn on and off your generator up to about 50ft
- Built-in Power Meter
Know what your loads each draw
- Warranty
- We offer a new limited warranty of
3 years/1000hr - see our warranty page.
- EPA certified 50 State
Add Honda Silver
EU7000is cover
Add 120/240 30Amp
to RV 50Amp trailer
adapter
Add Honda parallel kit
for paralleling two
EU7000is units together

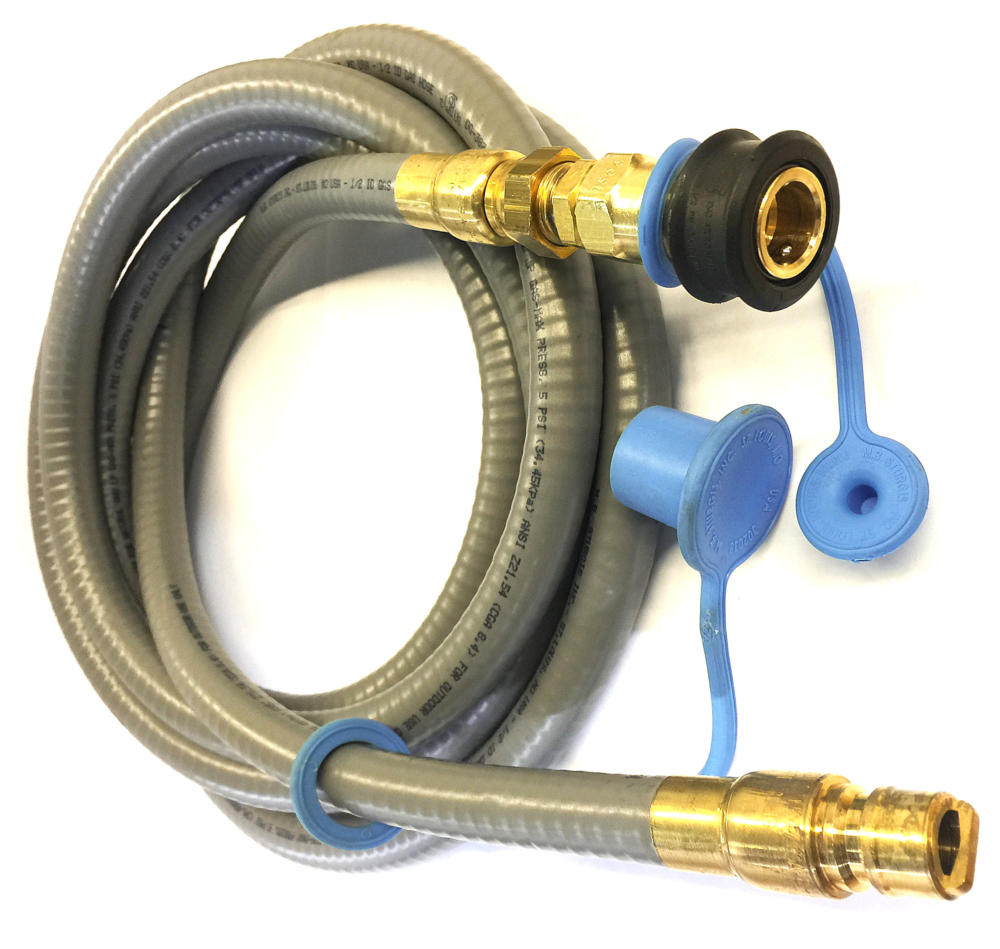

3/8” Female
to generator
1/2” Male
to supply
12ft x 1/2” I.D. Hose
Propane Natural Gas
Load
0.94 gal/hr 84,000 BTU/hr 5500 Watts
0.52 gal/hr 46,000 BTU/hr 2750 Watts
0.37 gal/hr 32,700 BTU/hr 1375 Watts
How long will
my tank last?
Shutoff +Quick Disconnect
How simple is it?
Add an outdoor shutoff valve then a quick-
disconnect for your generator and gas grill.
Then order one of our gas extension hoses
and...
We use the same pressure as the
natural gas or propane inside your
home.
Add optional gasoline tank
with fuel pump to convert
back to gasoline in about 15
minutes!
Add Genconnex
wired
remote start/stop
Shipping Rates Apply
To lower 48 States Only
Want to pick it up at a T-Force Freight Terminal?
SHIPPING NOTES:
Not eligible for shipping to Canada
Click on pictures to enlarge
Add 25ft Extension
Cord, 10gauge, L14-30
to L14-30, 120/240Vac
7.5kWatt rated
Add Outdoor inlet box
for L14-30, 120/240Vac
7.5kWatt rated
extension cord
Add Dual Tank
Auto-Switchover
regulator with 10ft
hose & Quick
disconnect output
Add Genconnex
EU7000is
Cold Weather Kit for
natural gas and propane
operation below 0.0 deg F
How do I connect
to my home’s
natural gas or
propane?
Additional Information
NOTE: Freight may not deliver if your driveway is too steep or
not accessible by small box truck
FUEL USAGE
All Genconnex generators have a
⅜” quick disconnect inlet for easily
connecting to your grill port or BBQ
tank using our hose with pressure
reducing regulator to a pressure of
7-13”w.c., (aka 1/2” PSI)
GENERATOR DIMENSIONS
28”W x 34”L x 30”H x 254lbs
FUEL CONNECTION
4 standard GFCI outlets, 1 30Amp-
120Vac outlet and 1 30Amp-120/240
outlet under protective covers. note
to use 4 prong 120/240 outlet press
selector switch to 120/240Vac
Genconnex billet
aluminum & brass
propane and natural
gas injection system
included
1
Output ratings are +/-3% measured at 68deg F, 29.92
inches of mercury. Your results may vary at different
temperature, and air pressure/altitude
Transfer Switch Features
-
Automatically turns off non-priority loads
when large high priority loads turn on to prevent
generator overloading.
- 120/240Vac - 30Amp L14-30 Outdoor rated power Inlet
- Programmable for UPS backup of selected circuits
(battery back up loads to prevent resetting)
- Pre-wired for easy electrician installation
NOTE: this transfer switch does not work with GFCI or
ARC-Fault breakers
Genconnex Direct
‘Home Package 9’
$7,544.93
In Stock!
+ Freight Shipping
Specifications
NOTE: IN CALIFORNIA FOR STATIONARY
EMERGENCY USE ONLY.
©2012-2023
Please note we are not a Honda dealer.
Honda is a registered trademark of Honda Motor Co.
HONDA EU7000is
Natural Gas Whisper
Quiet Inverter
Generator Home 9
Package
conversion by Genconnex Direct
Natural Gas
6kWatt 120/240Vac 9 Circuit Auto Load-shed
Generator Home Backup Package
Typical Configuration
240Vac well pump
Large refrigerator Large freezer Heating system or window A/C units Hall or bathroom lights Garage door opener Microwave and coffee maker Internet/TV and room light kitchen light 120Vac sump pump
What’s Included
Genconnex
®
generator
GXG-LPNG-EU7000is-SA-EC
configured for low-pressure propane with natural gas orifice included Honda silver generator cover APC UTS10 transfer switch with L14-30 inlet kit 12 foot 1/2” propane quick-disconnect extension hose with extra 1/2” female quick-disconnect w/NPT pipe threads 25 foot 120/240 30A outdoor electrical extension cord Oil funnel and 1 quart of fully synthetic oil Detachable Battery Tender (battery connection pre-installed) Honda Silver Cover
Package ‘Home 9’
Generator Features & Benefits
- 5,800 / 5,500 Watts peak/rated natural gas
- Ultra Sound Absorbing Enclosure
At 52dBa @1/4 load, 60 dBa @ rated load
- Inverter Output
Fuel efficient and electronics safe
- Push button start or remote start
- 120/240Vac or 120Vac
Selection switch on front
- Bluetooth remote control
Turn on and off your generator up to about 50ft
- Built-in Power Meter
Know what your loads each draw
- Warranty
- We offer a new limited warranty of
3 years/1000hr - see our warranty page.
- EPA certified 50 State
Propane Natural Gas
Load
0.94 gal/hr 84,000 BTU/hr 5500 Watts
0.52 gal/hr 46,000 BTU/hr 2750 Watts
0.37 gal/hr 32,700 BTU/hr 1375 Watts
Shipping Rates Apply
To lower 48 States Only
Want to pick it up at a T-Force Freight Terminal?
SHIPPING NOTES:
Not eligible for shipping to Canada
Click on pictures to enlarge
NOTE: IN CALIFORNIA FOR STATIONARY
EMERGENCY USE ONLY.
NOTE: Freight may not deliver if your driveway is too steep or
not accessible by small box truck
FUEL USAGE
All Genconnex generators have a
⅜” quick disconnect inlet for easily
connecting to your grill port or BBQ
tank using our hose with pressure
reducing regulator to a pressure of
7-13”w.c., (aka 1/2” PSI)
GENERATOR DIMENSIONS
28”W x 34”L x 30”H x 254lbs
FUEL CONNECTION
4 standard GFCI outlets, 1 30Amp-
120Vac outlet and 1 30Amp-120/240
outlet under protective covers. note
to use 4 prong 120/240 outlet press
selector switch to 120/240Vac
Genconnex billet
aluminum & brass
propane and natural
gas injection system
included
1
Output ratings are +/-3% measured at 68deg F, 29.92
inches of mercury. Your results may vary at different
temperature, and air pressure/altitude
Transfer Switch Features
-
Automatically turns off non-priority loads
when large high priority loads turn on to prevent
generator overloading.
- 120/240Vac - 30Amp L14-30 Outdoor rated power Inlet
- Programmable for UPS backup of selected circuits
(battery back up loads to prevent resetting)
- Pre-wired for easy electrician installation
NOTE: this transfer switch does not work with GFCI or
ARC-Fault breakers
Genconnex Direct
‘Home Package 9’
$7,544.93
In Stock!
+ Freight Shipping
A NOTE ABOUT
NATURAL GAS APPLIANCES:
Some
states
(including
but
not
limited
to
MA)
require
portable
generators
that
are
connected
to
a
home’s
gas
supply
(even
temporarily)
to
be
listed
devices.
Other
states
default
to
the
International
Fuel
Gas
Code
and
allow
non-listed
outdoor
only
devices
such
as
outdoor
natural
gas
grills,
heat
lamps
and
other
accessories
to
be
installed
as
permitted
by
your
town
and
local
inspector.
Please
check
first
with
your
local
inspector
if
you
are
not sure.
Always use a licensed
plumber!
This is your home.
Get it done right and get it inspected.
Nobody knows state, federal and local
safety codes better than the licensed
experts.
All off our “HX” Models work with our optional
APC/HONDA programmable auto load shedding 120Vac
transfer switch kits. Our kits aren’t just the basic switch,
but come complete with an outdoor water tight power
inlet install package- just pick 20A or 30A version to
match 2000 or 3000Watt generator!
This switch, designed by APC and HONDA will automatically shed less
needed loads to make sure there’s enough power to start critical loads.
Then it automatically turns the other loads back on as more power
becomes available!
For instance, it will automatically turn off your fridge and freezer for
10min while you make popcorn in your microwave - even with a
2000Watt Honda or Yamaha!
This is how you connect your home to your generator
GET A
“SMART” CIRCUIT
TRANSFER SWITCH!
Automatic
home
backup of 6-
10 circuits!
We include a 20Amp or
30Amp water tight outdoor
inlet kit!
Need
Automatic
Load
Management?
Quick Tips
Quick-
Disconnect
Sizes
All of our generators have a
3/8” male quick disconnect
on top.
How long will
my tank last?
Shutoff +Quick Disconnect
How simple is it?
Add an outdoor shutoff valve then a quick-disconnect for
your generator and gas grill. Then order one of our gas
extension hoses and...
We use the same pressure as the natural
gas or propane inside your home.
- Generators.......Honda EU series "whisper quiet"
- Generator Packages.......Home Backup
- Generator Packages.......Camping, RV & Food Truck Packages
- Generator Packages.......Off-Grid Packages
- Kits.......Do-it-Yourself Conversion
- Kits.......Have-Us-Do-It Conversion
- Automatic Transfer Switches for Portable Generators
- Accessories.......Electrical & Hardware
- Accessories.......Propane & Natural Gas Hoses & Fittings
- Accessories........Wired Remotes
- Generators.......Bi-Fuel Honda EU series "whisper quiet"
- Generatros.......Tri-Fuel Honda 'EG' Series
- Generator Packages.......Home Backup
- Generator Packages.......Camping, RV & Food Truck Packages
- Generator Packages.......Off-Grid Packages
- Kits.......Do-it-Yourself Conversion
- Kits.......Have-Us-Do-It Conversion
- Automatic Transfer Switches for Portable Generators
- Accessories.......Electrical Cords, Remotes & Adapters
- Accessories.......Propane & Natural Gas Hoses & Fittings
