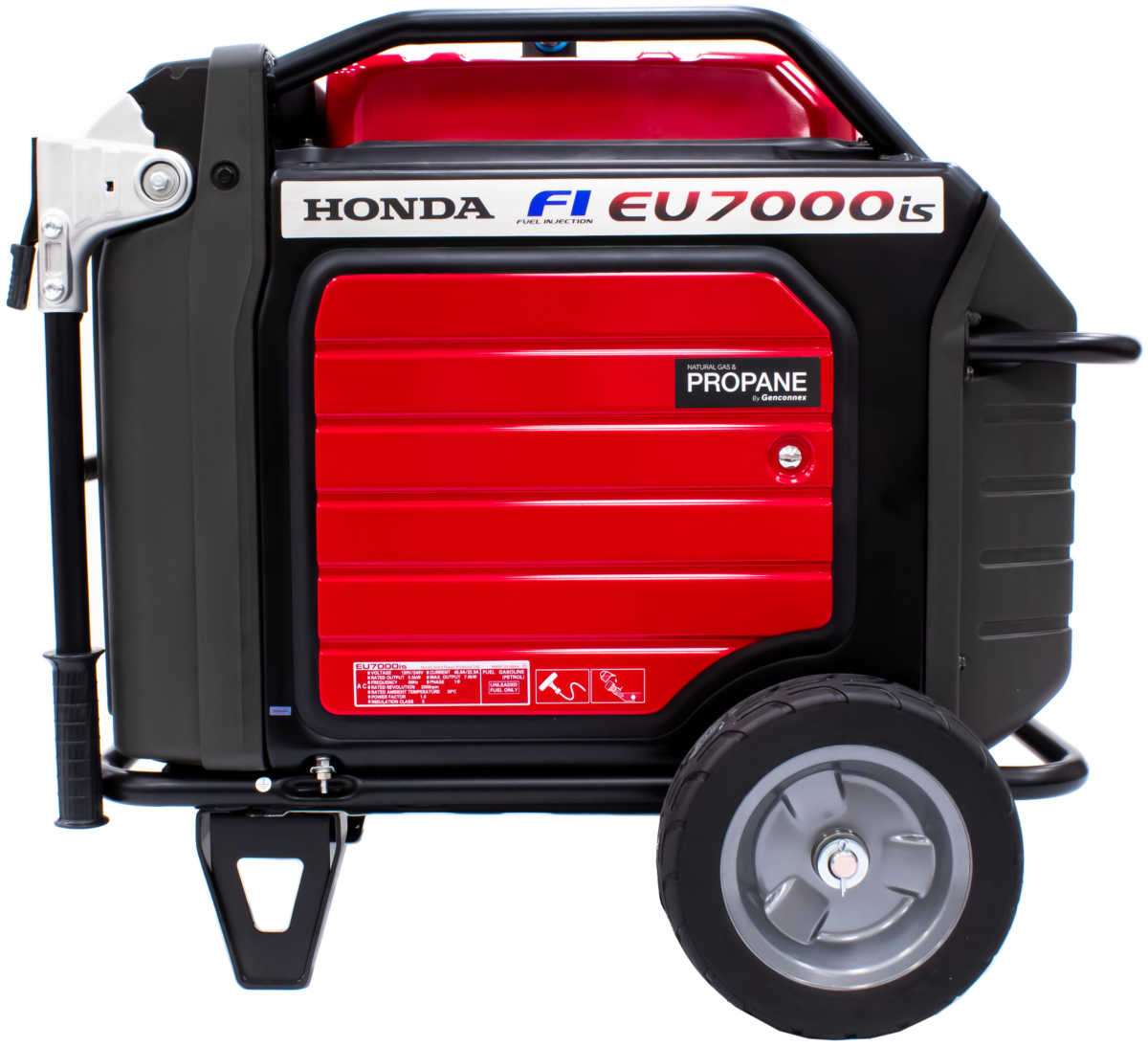

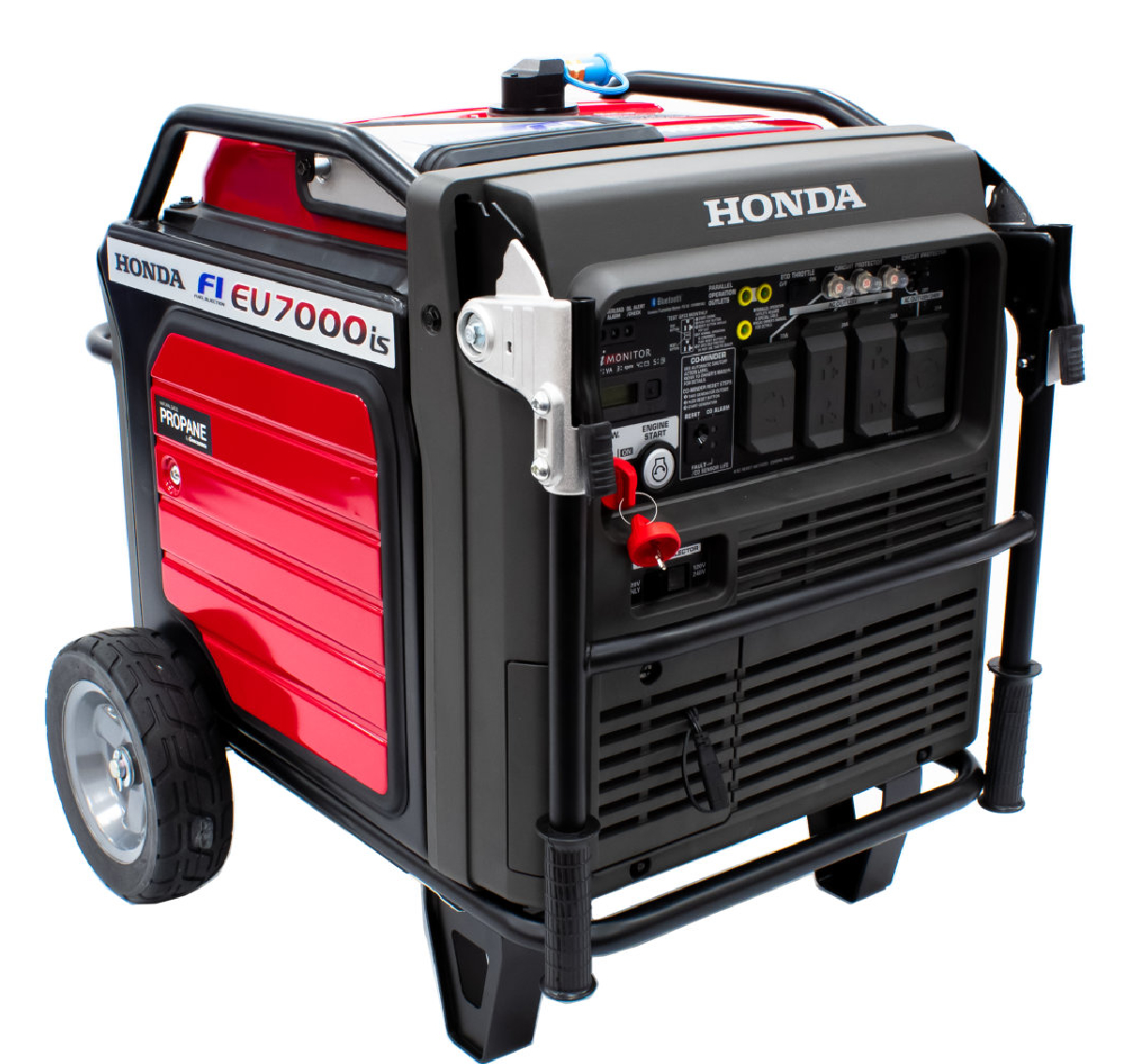

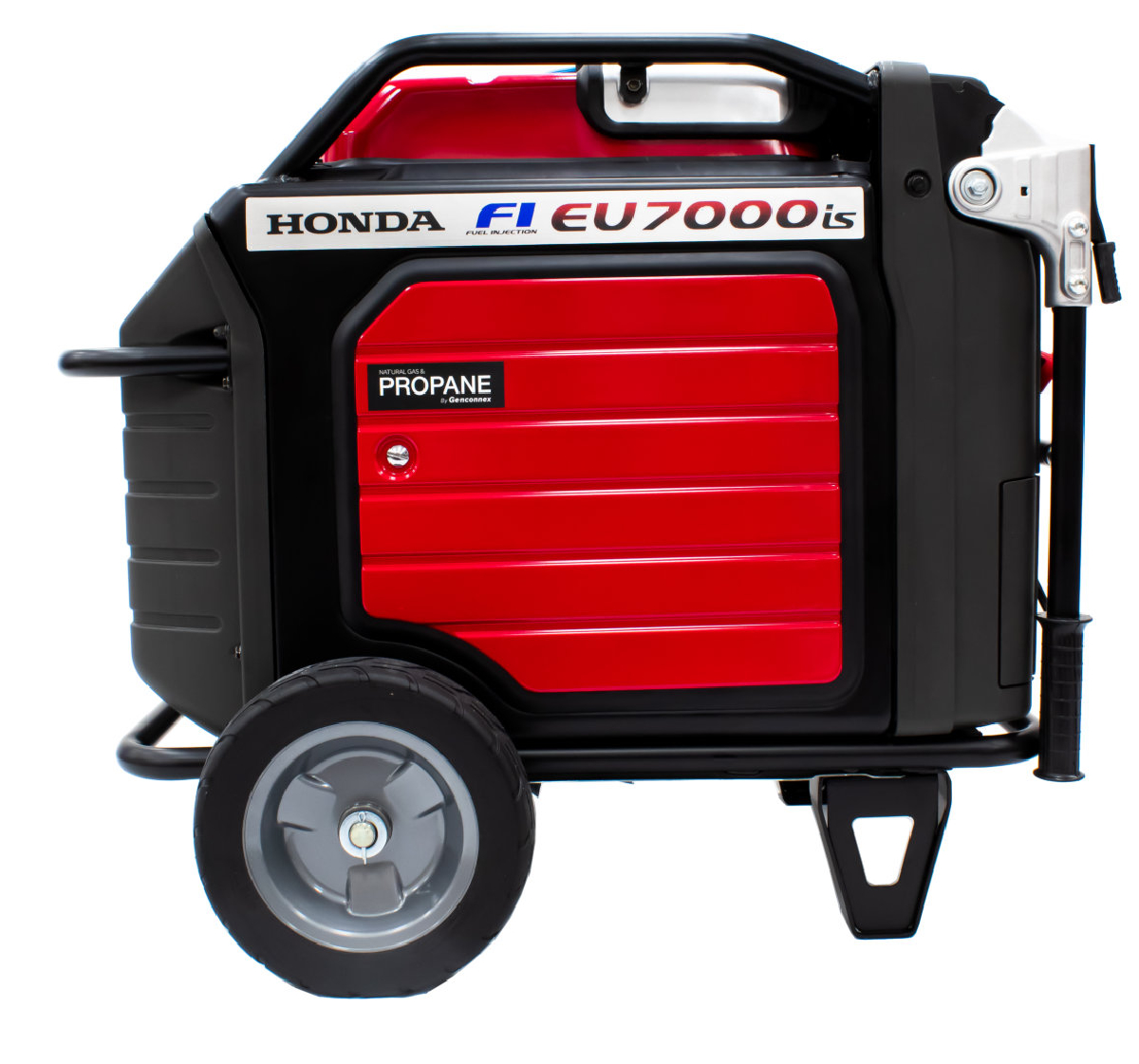

Bi-Fuel HONDA EU7000is Propane &
Natural Gas Whisper Quiet EFI
Inverter Generator KIT
Designed by Genconnex Direct
Accessories
More Options
A NOTE ABOUT
NATURAL GAS APPLIANCES:
Some
states
(including
but
not
limited
to
MA)
require
portable
generators
that
are
connected
to
a
home’s
gas
supply
(even
temporarily)
to
be
listed
devices.
Other
states
default
to
the
International
Fuel
Gas
Code
and
allow
non-listed
outdoor
only
devices
such
as
outdoor
natural
gas
grills,
heat
lamps
and
other
accessories
to
be
installed
as
permitted
by
your
town
and
local
inspector.
Please
check
first
with
your
local
inspector
if
you
are
not sure.
Always use a
licensed plumber!
This is your home.
Get it done right and get it
inspected. Nobody knows state,
federal and local safety codes
better than the licensed experts.
All off our generators work with our optional
APC/HONDA programmable auto load
shedding 120Vac transfer switch kits. Our kits
aren’t just the basic switch, but come complete
with an outdoor water tight power inlet install
package
This switch, designed by APC and HONDA will
automatically shed less needed loads to make sure there’s
enough power to start critical loads. Then it automatically
turns the other loads back on as more power becomes
available!
For instance, it will automatically turn off your fridge and
freezer for 10min while you make popcorn in your
microwave - even with a 2000Watt Honda or Yamaha!

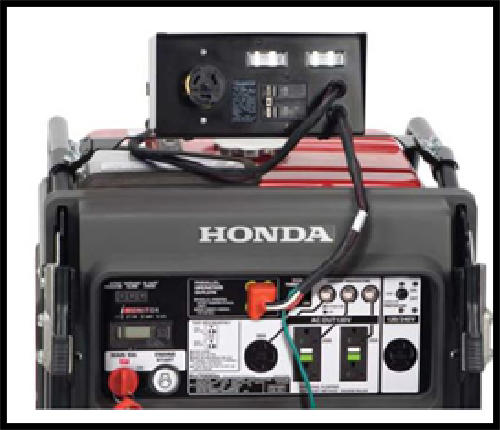

This is how you connect your home to your
generator
GET A
“SMART” CIRCUIT
TRANSFER SWITCH!
Automatic
home
backup of
6-10
circuits!
Includes a 30Amp
outdoor inlet kit
Need
Automatic
Load
Management?
Add 12’ x 1/2”id quick-
disconnect extension
hose for propane and
natural gas
Add 12’ x 3/8”id
quick-disconnect
extension hose for
propane
Add 6’ x 3/8”id stainless
steel over-braided quick-
disconnect extension
hose for propane
Add Honda Silver
EU7000is cover
Add 120/240 30Amp
to RV 50Amp trailer
adapter
Add Honda parallel kit
for paralleling two
EU7000is units together
3/8” Female
to generator
1/2” Male
to supply
12ft x 1/2” I.D. Hose

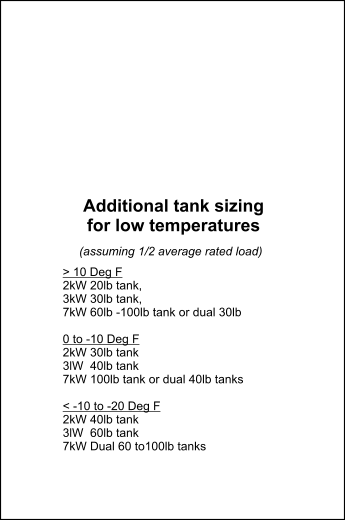

How long will
my tank last?
Shutoff +Quick Disconnect
How simple is it?
Add an outdoor shutoff valve then a quick-
disconnect for your generator and gas grill.
Then order one of our gas extension hoses
and...
We use the same pressure as the
natural gas or propane inside your
home.
Add optional gasoline tank
with fuel pump to convert
back to gasoline in about 15
minutes!
Add Genconnex
wired
remote start/stop
Add 25ft Extension
Cord, 10gauge, L14-30
to L14-30, 120/240Vac
7.5kWatt rated
Add Outdoor inlet box
for L14-30, 120/240Vac
7.5kWatt rated
extension cord
Add Dual Tank
Auto-Switchover
regulator with 10ft
hose & Quick
disconnect output
Add Genconnex
EU7000is
Cold Weather Kit for
natural gas and propane
operation below 0.0 deg F
How do I connect
to my home’s
natural gas or
propane?
Additional information
Build Time
approx. 90min
$899.99
Genconnex Direct
Model: GXK LPNG-EU7000is-kit-EC5.01
Ships in 1-2 weeks
Propane Natural Gas
Load
0.94 gal/hr 84,000 BTU/hr 5500 Watts
0.52 gal/hr 46,000 BTU/hr 2750 Watts
0.37 gal/hr 32,700 BTU/hr 1375 Watts
FUEL USAGE

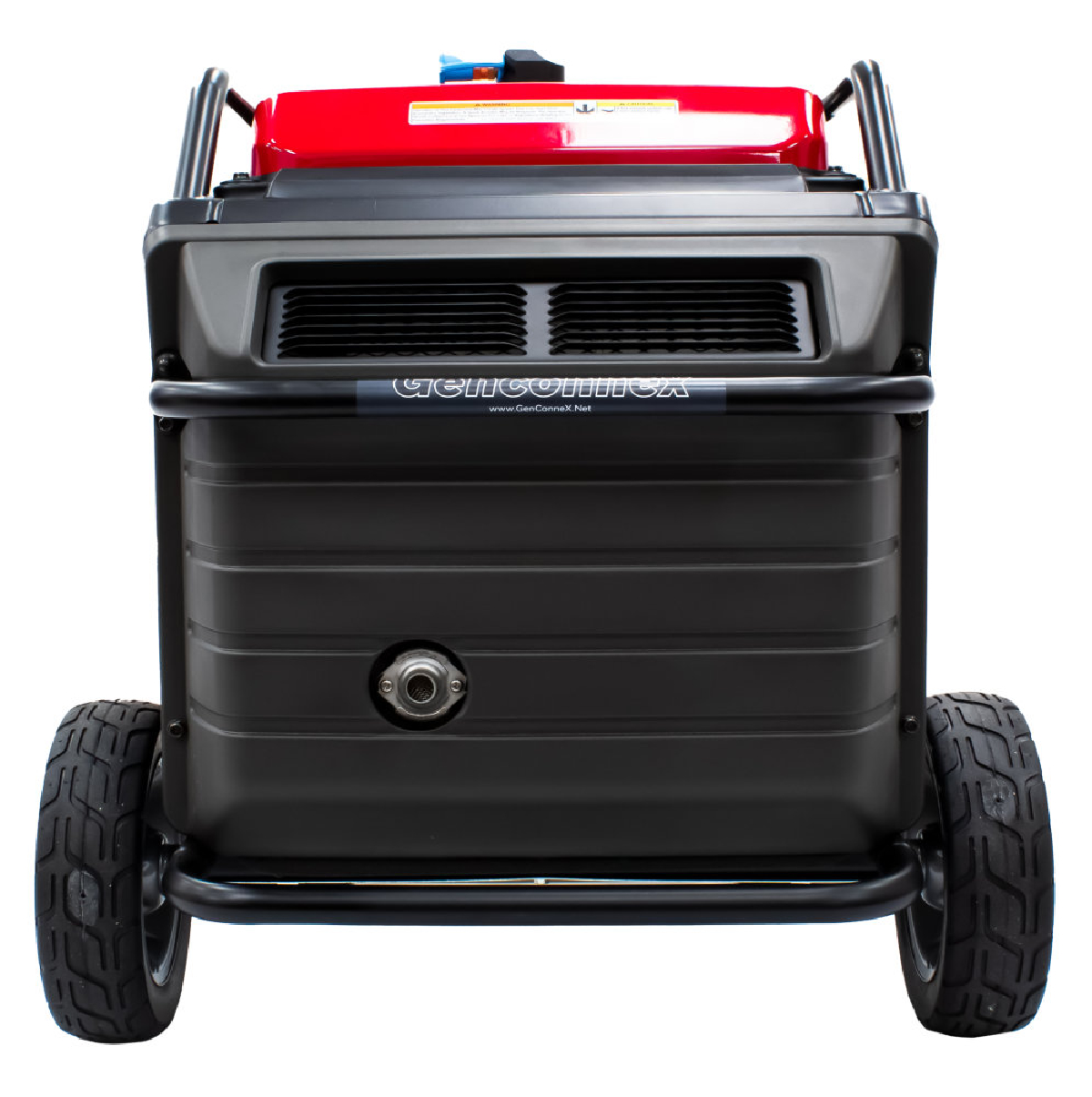

All Genconnex generators have a
⅜” quick disconnect inlet for easily
connecting to your grill port or BBQ
tank using our hose with pressure
reducing regulator to a pressure of
7-13”w.c., (aka 1/2” PSI)
6’ propane hose with
integral regulator for
connecting to standard
BBQ tank
12’ x 3/8” id hose with
3/8” quick-disconnect
6’ stainless steel over-
braided hose with 3/8”
quick-disconnect
12’ propane hose with
integral regulator for
connecting to standard
BBQ tank
GENERATOR DIMENSIONS
AFTER KIT INSTALLATION
28”W x 34”L x 30”H x 254lbs
FUEL CONNECTION
EU7000is
PROPANE
HOSE OPTIONS
12’ x 1/2” id hose with
1/2” quick-disconnect
MUST ONLY USE
THIS LARGER ½ ID
WITH NATURAL GAS
1
Output ratings are +/-3% measured at 68deg F, 29.92
inches of mercury. Your results may vary at different
temperature, and air pressure/altitude
Specifications
Extra female quick-
disconnect for your natural
gas pipe included
EU7000is
NATURAL GAS
HOSE OPTIONS
Features & Benefits
After installation
- 7,000 / 5,500 Watts peak/rated propane
1
- 5,800 / 5,500 Watts peak/rated natural gas
1
- Ultra Sound Absorbing Enclosure
At 52dBa @1/4 load, 60 dBa @ rated load
- Inverter Output
Fuel efficient and electronics safe
- Push button start or remote start
- 120/240Vac or 120Vac
Selection switch on front
- Bluetooth remote control
Turn on and off your generator up to about 50ft
- CO Detector built in
Designed to turn off your generator if it senses Carbon Monoxide
- Built-in Power Meter
Know what your loads each draw
- Warranty
- We offer a new limited warranty of
3 years/1000hr - see our warranty page.
- EPA certified 50 States

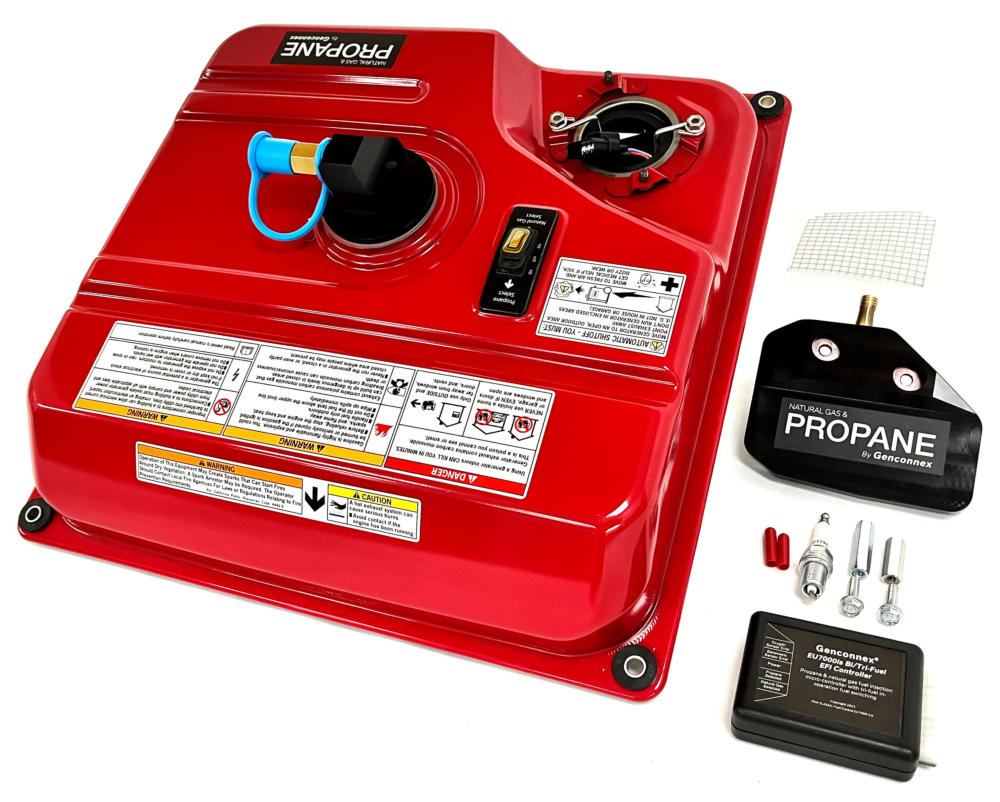

What’s Included

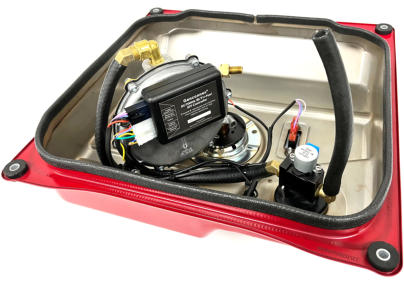

The Genconnex
GXK-LPNG-EU7000is-EC5.0 kit
comes with a new top that bolts in
place of your existing EU7000is’ fuel
tank to keep the Honda look, as well as
the Honda weather seal. The new top
comes completely assembled with a
safety shutoff valve, fuel regulator,
Genconnex EFI computer with altitude
sensor, EFI fuel valve, and control
wiring harness for connecting to the
Honda control system. Also included is
our billet aluminum upper air box
replacement cover with brass fuel
injector designed specifically for the
EU7000is to maximize power with
natural gas and propane. No tuning or
adjustments needed for 0-10,000ft.
Skill Level Needed
Some electro-mechanical
or automotive experience

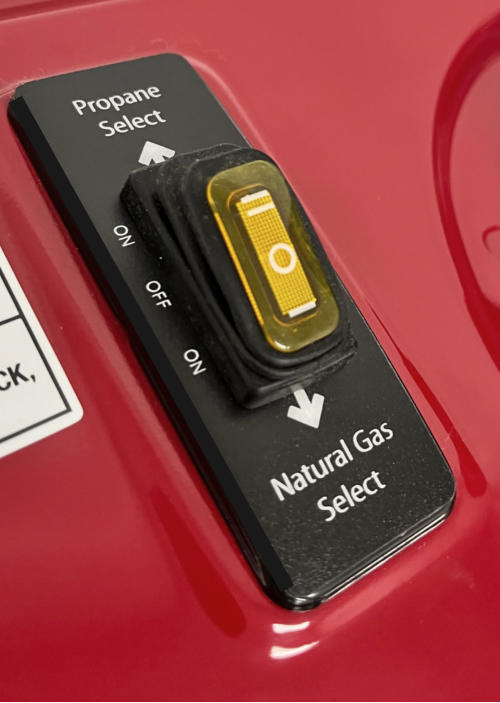

Switch Position
I
II
7,000W Propane
5,800W Natural Gas
- One switch
changes fuel
selection!
List of Features:
Click on pictures to enlarge
No Sales Tax outside of MA
Shipping Rates Apply to lower 48 States Only
SHIPPING NOTES:
Not eligible for shipping to Canada
How it works
Genconnex
EFI fuel induction
control valve
Provides precise control of fuel
Genconnex
EFI control computer
Provides real-time closed-loop control of air/fuel ratio
from oxygen sensor for optimum fuel performance,
rapid 0-100% load change performance, and auto
correction for air pressure/altitude
Oxygen sensor
feedback harness
Provides real-time feedback of
combustion gas similar to modern
automobiles
Fuel selection switch
Provides input for computer to change
feedback response based on fuel type
Secondary safety
fuel shutoff valve
Provides secondary fuel lock-off
required for remote start/stop
Genconnex
Aluminum upper air-box cover
with integral fuel injector
Provides precise control of fuel and
strengthens upper air box
EFI control
Electronic fuel induction
constantly adjusts to
correct performance for
lower fuel usage
- Bi-Fuel
Propane & Natural Gas
with full ECO mode
- Load starting
Able to cold-start up to
75% of full load with either
fuel
- Secondary shut-off
Built-in safety solenoid
required for remote start
- Billet aluminum upper
air box injector unit
Bolt-on replacement for
plastic upper air box cover
and clips
There’s nothing else like this!
We also sell it fully installed here
We also sell a TRI-FUEL here
More Options
Accessories
©2012-2023
Please note we are not a Honda dealer.
Honda is a registered trademark of Honda Motor Co.
A NOTE ABOUT
NATURAL GAS APPLIANCES:
Some
states
(including
but
not
limited
to
MA)
require
portable
generators
that
are
connected
to
a
home’s
gas
supply
(even
temporarily)
to
be
listed
devices.
Other
states
default
to
the
International
Fuel
Gas
Code
and
allow
non-listed
outdoor
only
devices
such
as
outdoor
natural
gas
grills,
heat
lamps
and
other
accessories
to
be
installed
as
permitted
by
your
town
and
local
inspector.
Please
check
first
with
your
local
inspector
if you are not sure.
Always use a licensed
plumber!
This is your home.
Get it done right and get it inspected.
Nobody knows state, federal and local
safety codes better than the licensed
experts.
All off our “HX” Models work with our optional
APC/HONDA programmable auto load shedding 120Vac
transfer switch kits. Our kits aren’t just the basic switch,
but come complete with an outdoor water tight power
inlet install package- just pick 20A or 30A version to
match 2000 or 3000Watt generator!
This switch, designed by APC and HONDA will automatically shed less
needed loads to make sure there’s enough power to start critical loads.
Then it automatically turns the other loads back on as more power
becomes available!
For instance, it will automatically turn off your fridge and freezer for
10min while you make popcorn in your microwave - even with a
2000Watt Honda or Yamaha!
This is how you connect your home to your generator
GET A
“SMART” CIRCUIT
TRANSFER SWITCH!
Automatic
home
backup of 6-
10 circuits!
We include a 20Amp or
30Amp water tight outdoor
inlet kit!
Need
Automatic
Load
Management?
Add 12’ x 1/2”id quick-
disconnect extension
hose for propane and
natural gas
Add 12’ x 3/8”id
quick-disconnect
extension hose for
propane
Add 6’ x 3/8”id stainless
steel over-braided quick-
disconnect extension
hose for propane
Quick Tips
Add Honda Silver
EU7000is cover
Add 120/240 30Amp
to RV 50Amp trailer
adapter
Add Honda parallel kit
for paralleling two
EU7000is units together
3/8” Female
to generator
1/2” Male
to supply
12ft x 1/2” I.D. Hose

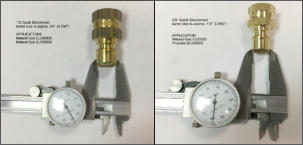

Quick-
Disconnect
Sizes
All of our generators have a 3/8”
male quick disconnect on top.
How long will
my tank last?
Shutoff +Quick Disconnect
How simple is it?
Add an outdoor shutoff valve then a quick-disconnect for
your generator and gas grill. Then order one of our gas
extension hoses and...
We use the same pressure as the natural
gas or propane inside your home.
Add optional
gasoline tank with
fuel pump to convert
back to gasoline in
about 15 minutes!
Add Genconnex
wired
remote start/stop
Add Genconnex
EU7000is
Cold Weather Kit for natural
gas and propane operation
below 0.0 deg F
Genconnex EU7000is Cold Weather Kit
Additional information
Bi-Fuel HONDA
EU7000is Propane &
Natural Gas Whisper
Quiet EFI Inverter
Generator KIT
Designed by Genconnex Direct
Build Time
approx. 90min
$899.99
Genconnex Direct
Model: GXK LPNG-EU7000is-kit-EC5.01
Ships in 1-2 weeks
Propane Natural Gas
Load
0.94 gal/hr 84,000 BTU/hr 5500 Watts
0.52 gal/hr 46,000 BTU/hr 2750 Watts
0.37 gal/hr 32,700 BTU/hr 1375 Watts
FUEL USAGE
All Genconnex generators have a
⅜” quick disconnect inlet for easily
connecting to your grill port or BBQ
tank using our hose with pressure
reducing regulator to a pressure of
7-13”w.c., (aka 1/2” PSI)
6’ propane hose with
integral regulator for
connecting to standard
BBQ tank
12’ x 3/8” id hose with
3/8” quick-disconnect
6’ stainless steel over-
braided hose with 3/8”
quick-disconnect
12’ propane hose with
integral regulator for
connecting to standard
BBQ tank
GENERATOR DIMENSIONS
AFTER KIT INSTALLATION
28”W x 34”L x 30”H x 254lbs
FUEL CONNECTION
EU7000is
PROPANE
HOSE OPTIONS
12’ x 1/2” id hose with
1/2” quick-disconnect
MUST ONLY USE
THIS LARGER ½ ID
WITH NATURAL GAS
1
Output ratings are +/-3% measured at 68deg F, 29.92
inches of mercury. Your results may vary at different
temperature, and air pressure/altitude
Specifications
Extra female quick-
disconnect for your natural
gas pipe included
EU7000is
NATURAL GAS
HOSE OPTIONS
Features & Benefits
After installation
- 7,000 / 5,500 Watts peak/rated propane
1
- 5,800 / 5,500 Watts peak/rated natural gas
1
- Ultra Sound Absorbing Enclosure
At 52dBa @1/4 load, 60 dBa @ rated load
- Inverter Output
Fuel efficient and electronics safe
- Push button start or remote start
- 120/240Vac or 120Vac
Selection switch on front
- Bluetooth remote control
Turn on and off your generator up to about 50ft
- CO Detector built in
Designed to turn off your generator if it senses Carbon Monoxide
- Built-in Power Meter
Know what your loads each draw
- Warranty
- We offer a new limited warranty of
3 years/1000hr - see our warranty page.
- EPA certified 50 States
What’s Included
The Genconnex
GXK-LPNG-EU7000is-EC5.0 kit
comes with a new top that bolts in
place of your existing EU7000is’ fuel
tank to keep the Honda look, as well as
the Honda weather seal. The new top
comes completely assembled with a
safety shutoff valve, fuel regulator,
Genconnex EFI computer with altitude
sensor, EFI fuel valve, and control
wiring harness for connecting to the
Honda control system. Also included is
our billet aluminum upper air box
replacement cover with brass fuel
injector designed specifically for the
EU7000is to maximize power with
natural gas and propane. No tuning or
adjustments needed for 0-10,000ft.
Skill Level Needed
Some electro-mechanical
or automotive experience
Click on pictures to enlarge
No Sales Tax outside of MA
Shipping Rates Apply to lower 48 States Only
SHIPPING NOTES:
Not eligible for shipping to Canada
How it works
Genconnex
EFI fuel induction
control valve
Provides precise control of fuel
Genconnex
EFI control computer
Provides real-time closed-loop control of air/fuel
ratio from oxygen sensor for optimum fuel
performance, rapid 0-100% load change
performance, and auto correction for air
pressure/altitude
Oxygen sensor
feedback harness
Provides real-time feedback of
combustion gas similar to
modern automobiles
Fuel selection switch
Provides input for computer to
change feedback response based
on fuel type
Secondary safety
fuel shutoff valve
Provides secondary fuel
lock-off required for remote
start/stop
Genconnex
Aluminum upper air-box cover
with integral fuel injector
Provides precise control of fuel and
strengthens upper air box
Switch Position
I
II
7,000W Propane
5,800W Natural Gas
- One switch
changes fuel
selection!
List of Features:
EFI control
Electronic fuel induction
constantly adjusts to
correct performance for
lower fuel usage
- Bi-Fuel
Propane & Natural Gas
with full ECO mode
- Load starting
Able to cold-start up to
75% of full load with either
fuel
- Secondary shut-off
Built-in safety solenoid
required for remote start
- Billet aluminum upper
air box injector unit
Bolt-on replacement for
plastic upper air box cover
and clips
There’s nothing else like this!
We also sell it fully installed here
We also sell a TRI-FUEL here
- Generators.......Honda EU series "whisper quiet"
- Generator Packages.......Home Backup
- Generator Packages.......Camping, RV & Food Truck Packages
- Generator Packages.......Solar-Assist Packages
- Kits.......Do-it-Yourself Conversion
- Kits.......Have-Us-Do-It Conversion
- Automatic Transfer Switches for Portable Generators
- Accessories.......Electrical & Hardware
- Accessories.......Propane & Natural Gas Hoses & Fittings
- Accessories........Wired Remotes
- Generators.......Bi-Fuel Honda EU series "whisper quiet"
- Generatros.......Tri-Fuel Honda 'EG' Series
- Generator Packages.......Home Backup
- Generator Packages.......Camping, RV & Food Truck Packages
- Generator Packages.......Off-Grid Packages
- Kits.......Do-it-Yourself Conversion
- Kits.......Have-Us-Do-It Conversion
- Automatic Transfer Switches for Portable Generators
- Accessories.......Electrical Cords, Remotes & Adapters
- Accessories.......Propane & Natural Gas Hoses & Fittings
